Adjusting Main Drive Chains (MultiCrop Baler)

1. Adjusting roll drive chains:

Adjust tension on all roll chains by means of the eyebolt nut (A) so that length of spring (B) and strap (C) are the same.


A-Nut
B-Spring
C-Strap

CC1026075
CC1021394

OUCC006,00010FA -19-02FEB07-1/2

2. Adjusting conveyor drive chains:

a. Remove rear gate shields on both side.

b. Check that distance (A) is within specifications.

Specification

A -Distance 59 mm 2.32 in.

c. If necessary, adjust distance (A).

d. Check that distance (B) is within specifications on both side.

Specification

B -Distance 150 mm 5.91 in.

e. If necessary, adjust spring length (B).

f. Reinstall rear gate shields on both side.


A-Distance
B-Distance

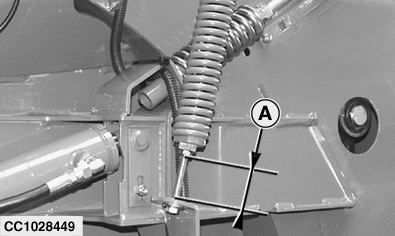

CC1028449

Conveyor Drive Chain

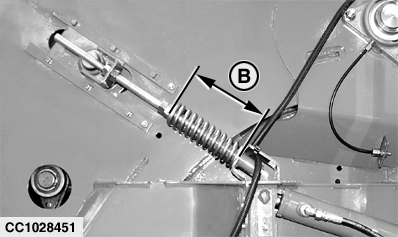

CC1028451

Conveyor Chain

OUCC006,00010FA -19-02FEB07-2/2
