Adjusting Chain Oil Pipe (MultiCrop Baler)

1. Loosen nut (A).

2. Align each oil pipe (B) with chain (C) as shown.

3. Tighten nut (A).

This adjustment allows to lubricate chain (C) correctly.

IMPORTANT: Oil pipes (B) should not touch chain (C). Other adjustments may cause premature chain wear.

4. Repeat procedure on opposite side.

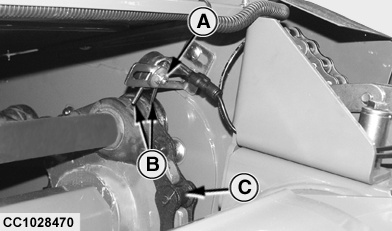

CC1028470


A-Nut
B-Oil pipe
C-Chain

OUCC006,00010FB -19-19DEC06-1/1
