Unplugging Baler with Rotary Feeder (Baler without BaleTrak Plus)

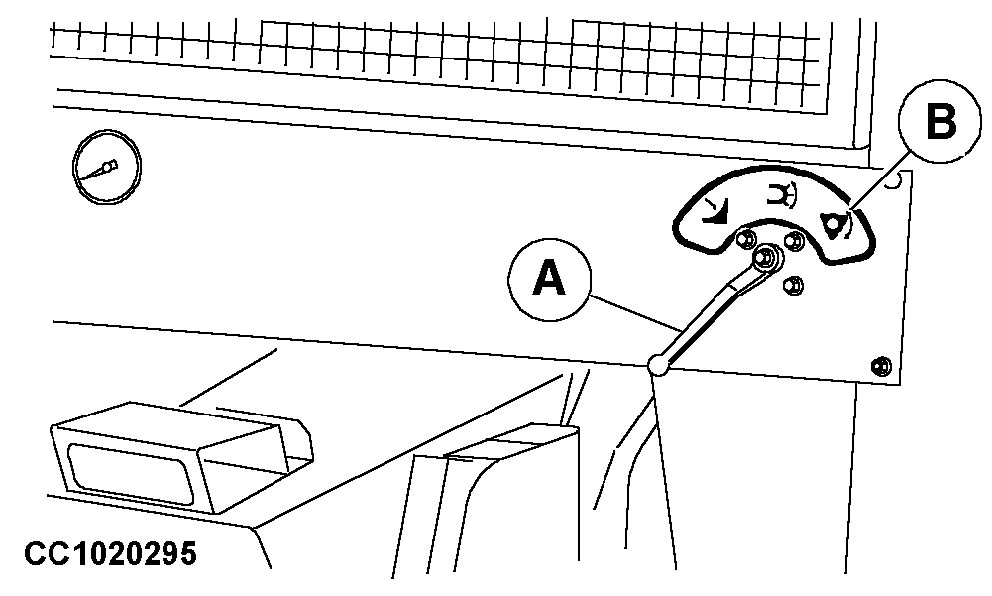

NOTE: Reversing rotary feeder function uses the same selective control valve as the pickup raise/lower control. Whenever necessary to unplug the baler, reverse the rotary feeder drive. 1. Stop tractor.2. Disengage the PTO. 3. Turn three function valve lever (A) in position (B) to reverse rotary feeder. 4. Act on selective control valve lever to reverse the baler gear box. 5. Slowly engage the PTO at slow tractor idle in such a way that the rotary feeder receives only one impulsive rotation movement. Impulsive movement means, NOT MORE THAN A HALF TURN OF ROTARY FEEDER PER IMPULSE. Failure to do so could result in material wraps and rotary feeder plugging. 6. When the rotary feeder is unplugged, disengage the PTO and act on selective control valve lever to move the baler gear box in the normal operation. 7. Move lever (A) in position to raise or lower the pickup. IMPORTANT: The PTO must be disengaged to change the direction of the rotary feeder. |
|
OUCC006,00010FE -19-04DEC06-1/1 |
