Unplugging Baler with Double Rotary Feeder

When the double rotary feeder is plugged and the shear bolt is broken, the operator can unplug the double rotary feeder with tool (C).

Unplug double rotary feeder as follow:

Turn the swivel cover (B).

Place tool (C) on shaft (A).

Turn tool (C) to unplug the double rotary feeder.

Replace shear bolt. See "Replacing Pickup Drive Shear Bolt (Baler with Rotary Feeder Mounted Below Feeding Channel or Double Rotary Feeder)" in "Service" section.

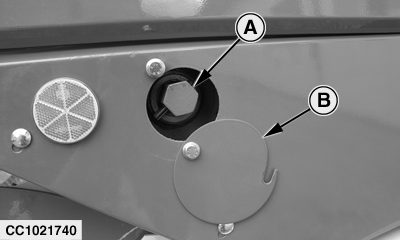

A-Shaft
B-Swivel cover

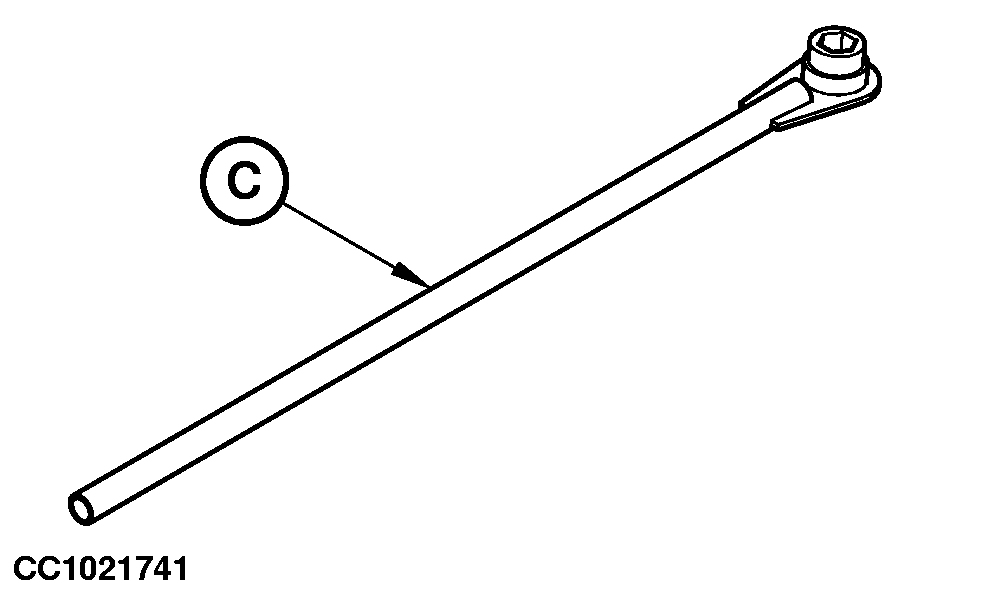

C-Tool
