Retracting/Engaging Precutter Knives (Baler without BaleTrak Plus)

NOTE: Retracting/engaging precutter knives function uses the same selective control valve as the pickup raise/lower control.

Turn three function valve lever (A) in position (B) to retract or engage precutter knives.

Act on selective control valve lever of the tractor to retract or engage the knives.

IMPORTANT: Retract and engage precutter knives several times after each working day to prevent knives from jamming.

NOTE: When using baler with knives retracted for a long period of time, it is recommended to remove them (see "Replacing Precutter Knives" in "Service" section) and to install fillers to plug the knife slot (see "Knife Slot Filler Kit" in "Attachments" section).

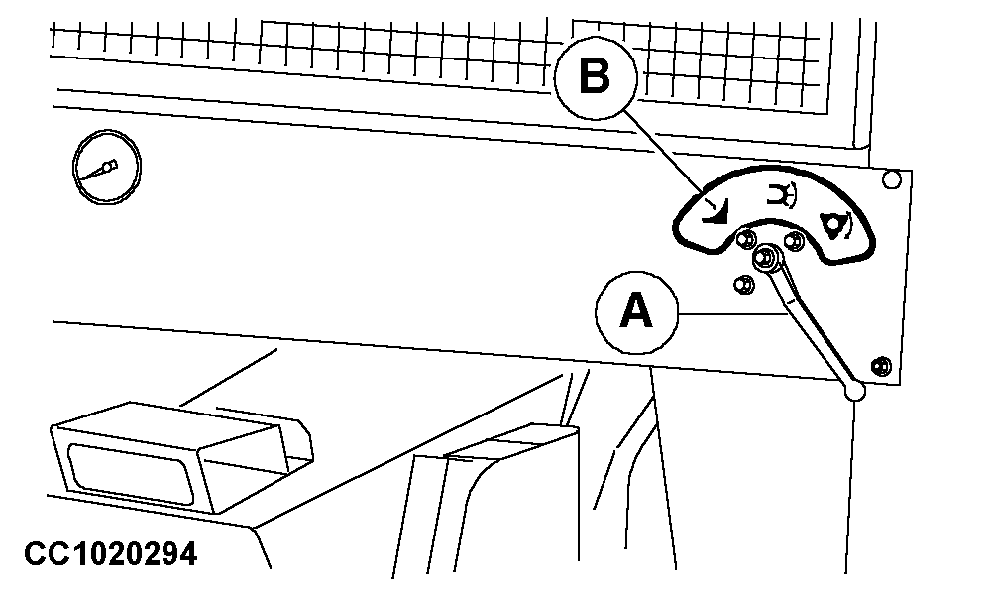

CC1020294


A-Three function valve lever
B-Position to retract or engage precutter knives

OUCC006,0001100 -19-13JUL06-1/1
