Positioning Short Crop Deflector (Baler with Rotary Feeder)

The rotary feeder short crop deflector (A) can be set in several operating positions when baling short crops or in storage position when baling normal crops.

Moving from Storage to Operating Position

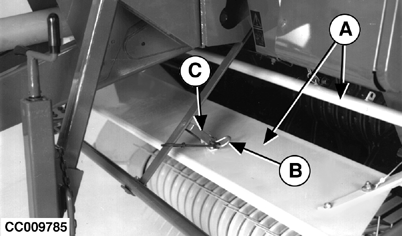

1. Hold short crop deflector (A) by hand, then remove spring-locking pin (B).

2. Let the short crop deflector (A) fall down.

3. Store spring-locking pin (B) on strap (C).

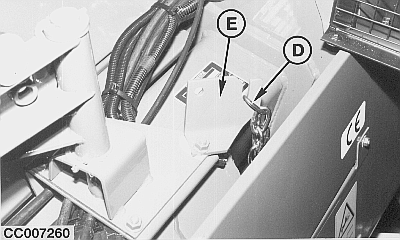

4. Depending on the windrow thickness, attach chain link (D) on chain anchor (E) to obtain the desired space between tip of pickup teeth and short crop deflector (A).

NOTE: The short crop deflector is spring loaded to allow floating. This floating can be adjusted by using more or less chain links between spring anchors.

Moving from Operating to Storage Position

1. Remove spring-locking pin (B) from strap (C).

2. Raise short crop deflector (A) and secure it with spring-locking pin (B) on strap (C).

NOTE: Chain can stay attached on anchor to recover the same short crop deflector (A) adjustment for next use.

CC009785
CC007260


A-Short crop deflector
B-Spring-locking pin
C-Strap
D-Chain
E-Anchor

OUCC006,0001101 -19-28NOV06-1/1
