Installing Straw Bar (Baler without Rotary Feeder)

To improve the crop flow between pickup and bale chamber when baling short and brittle straw, the straw bar must be installed on the machine.

Proceed as follows:

2. Lock gate in "open" position. (See "Gate Lock Valve" in this Section).

3. Shut off tractor engine.

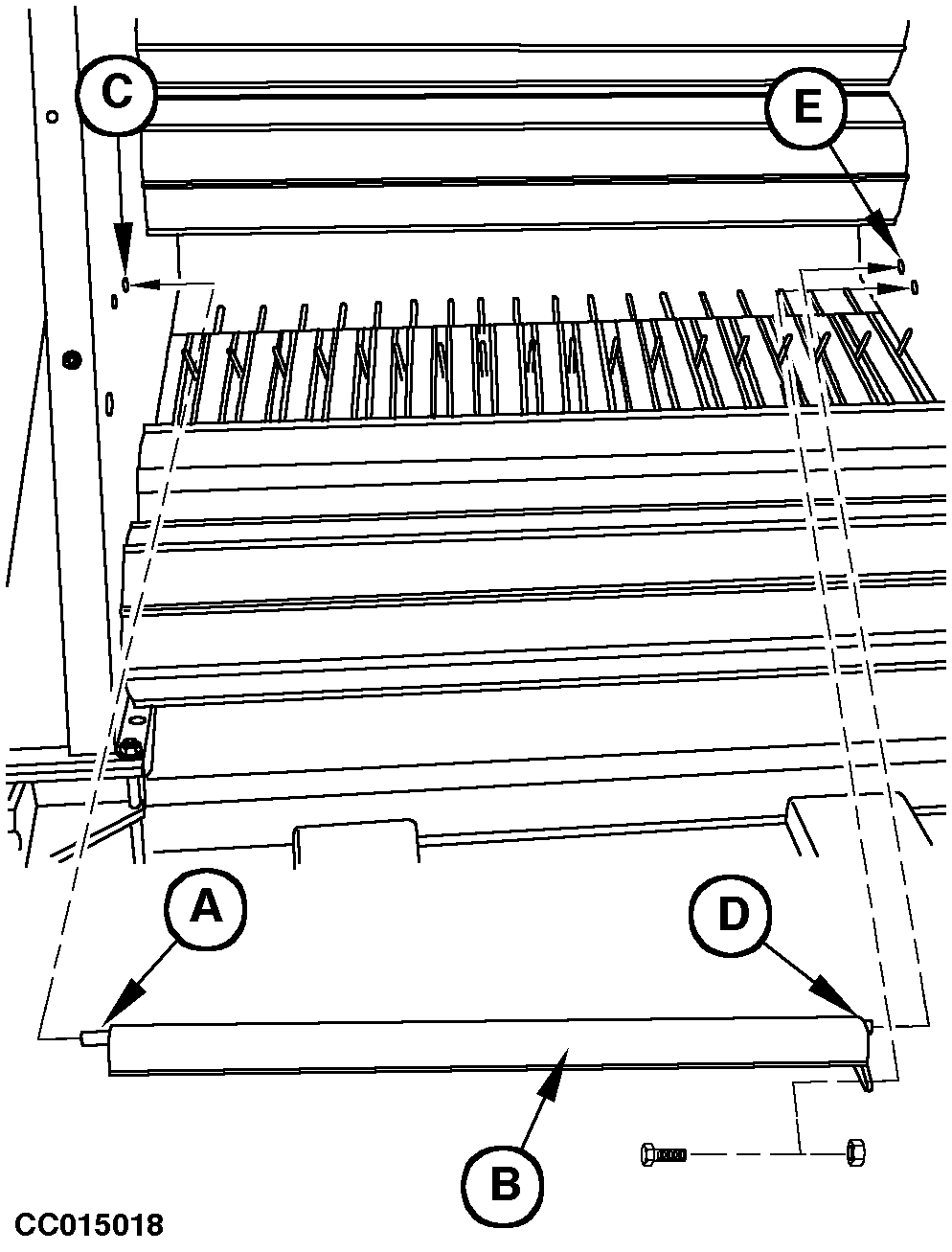

4. Insert left-hand pin (A) of bar (B) first into left-hand front fixing hole (C) then slide bar (B) to the right to insert right-hand pin (D) in its fixing hole (E) as shown.

5. Attach bar (B) to the right-hand side of the bale chamber using the existing hardware.

A-Left-hand pin
B-Bar
C-Left-hand fixing holes
D-Right-hand pin
E-Right-hand fixing hole
