Installing Straw Bar (Baler with Rotary Feeder)

To improve the crop flow between pickup and bale chamber when baling short and brittle straw, the straw bar must be installed on the machine.

Proceed as follows:

2. Lock gate in "open" position (see "Gate Lock Valve" in this section).

3. Shut off tractor engine.

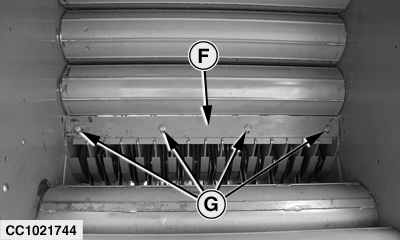

4. Remove scraper (F).

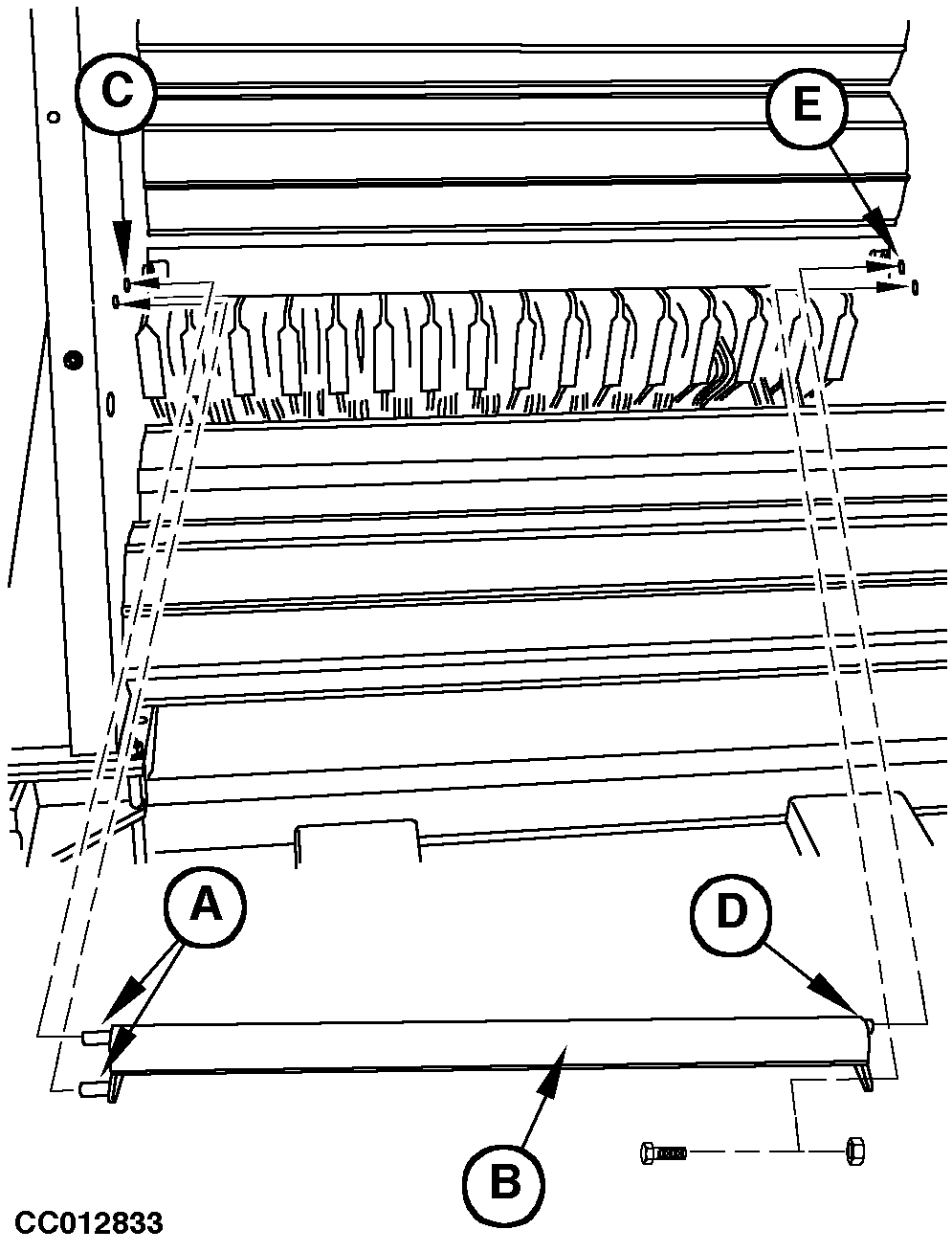

5. Insert left-hand pins (A) of bar (B) first into left-hand fixing holes (C) then slide bar (B) to the right to insert right-hand pin (D) in its fixing hole (E) as shown.

6. Attach straw bar (B) to the right-hand side of the bale chamber using the existing hardware.

IMPORTANT: When the crop is not short and brittle, straw bar (B) must be removed and scraper (F) installed. See "Adjusting Roll (NR 13) Scraper" in this section.

A-Left-hand pins
B-Bar
C-Left-hand fixing holes
D-Right-hand pin
E-Right-hand fixing hole
F-Scraper
G-Fixing screws

OUCC006,0001103 -19-13JUL06-1/1
