Channel 022: Test of Twine Pulley Sensor 1

Select "CH022" to test the twine pulley sensor 1 (right pulley).

The pulley sensor number 1 informs the monitor about pulley rotation which confirms that the twine has been caught by the bale during the tying cycle.

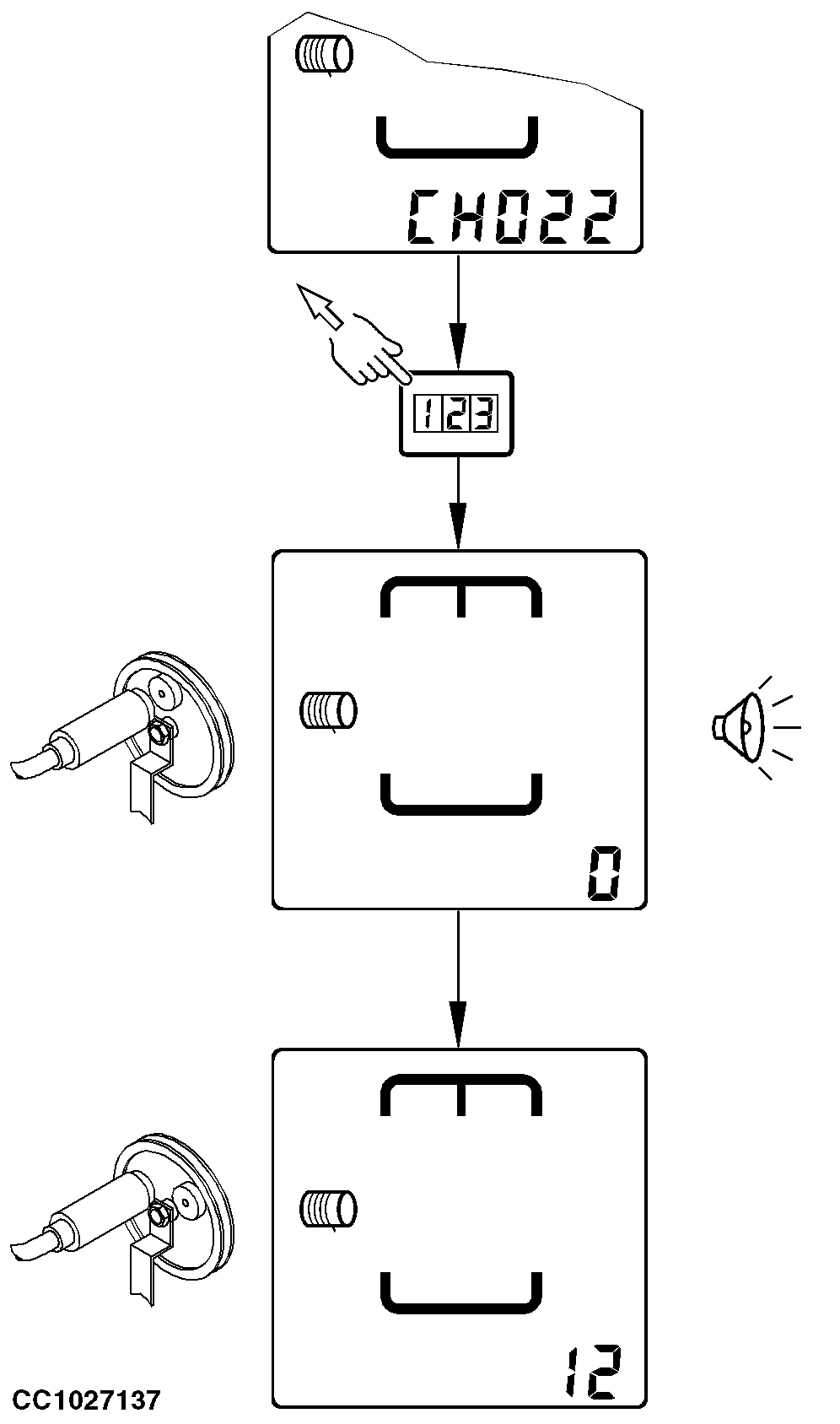

Rotate pulley by hand.

The monitor displays "0" with a continuous beep when the sensor is aligned with the magnet.

The monitor displays "12" when the sensor is not aligned with the magnet.

NOTE: When channel 22 is selected, the speed of pulley 1 is displayed as number of turns per second.

If this test is not OK, check the sensor adjustment. See "Adjusting Twine Pulley Sensor" in "Service" section or your John Deere dealer.
