Adjusting 2.00 m (6 ft 7 in.) Rotary Feeder Pickup Height (Pickup without Downstop)

IMPORTANT: Gauge wheels (A) are designed to be constantly in contact with the ground.

Adjust pickup height by positioning gauge wheel support (B) as follows:

1. Act on selective control valve lever to fully raise the pickup.

2. Remove spring-locking pin (C) then choose one of the positioning holes (D) to fix support (B) on stud (E). Install spring-locking pin (C).

3. Repeat procedure on opposite side.

4. Act on selective control valve lever to fully lower the pickup.

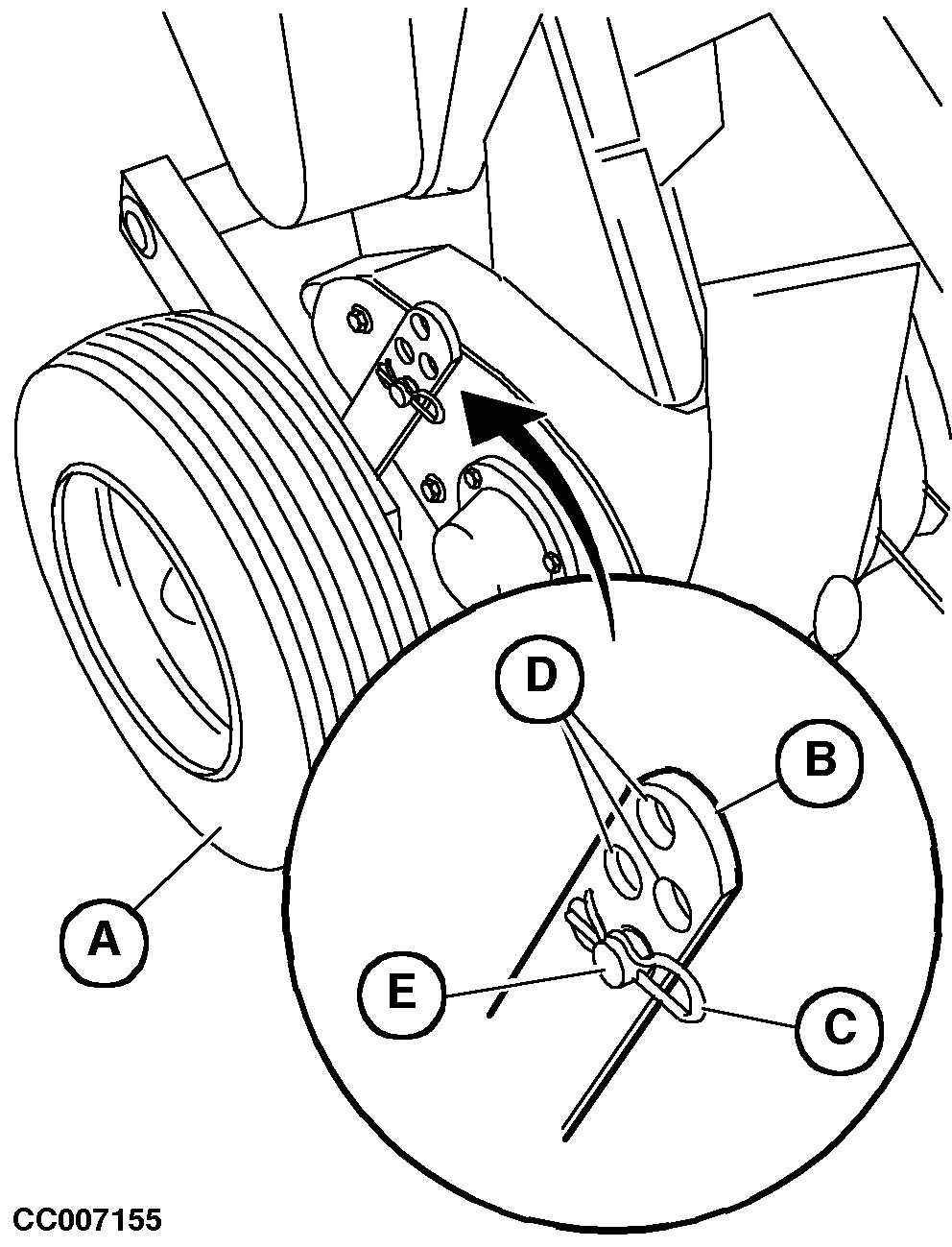

A-Gauge wheel
B-Support
C-Spring-locking pin
D-Positioning holes
E-Stud
