Adjusting 2.00 m (6 ft 7 in.) Pickup Height (Baler with Rotary Channel Mounted Below Feeding Channel or Double Rotary Feeder)

Adjust pickup height as follows:

1. Act on selective control valve lever to fully raise the pickup.

2. Remove spring pin (A) then install it in one of the holes of the downstop (B).

3. Act on selective control valve lever to fully lower the pickup.

4. Check pickup height.

5. Repeat procedure until the desired height is obtained.

NOTE: The lowest hole allows to lock the pickup in the highest position for transport.

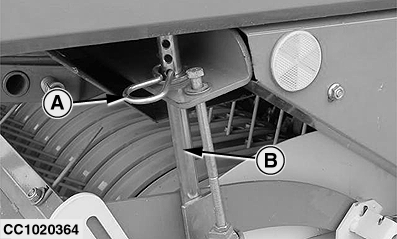

CC1020364


A-Spring Pin
B-Downstop
