Adjusting Rotary Feeder Pickup Float Spring

Hydraulically raise pickup to release spring pressure.

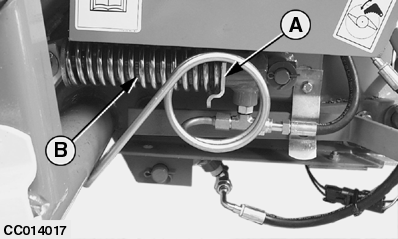

Set the bottom washer (A) into one of the 4 grooves on each cylinder barrel (B).

Lower the pickup.

NOTE: This setting should allow the pickup to drop completely when lowered. If not, slightly reduce spring tension.

When operating at heights other than the extreme down position, additional spring force will be required to obtain adequate float.

A-Washer
B-Cylinder barrel

OUCC006,0001114 -19-21JUL06-1/1
