Adjusting 2.00 m (6 ft 7 in.) and 2.20 m (7 ft 2.6 in.) Rotary Feeder Pickup Height (Pickup with Downstop)

Act on selective control valve lever to fully raise the pickup.

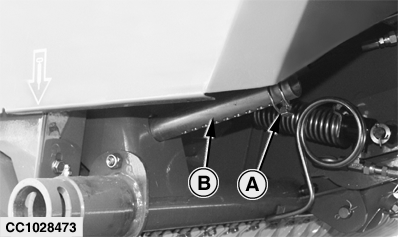

Remove shaft locking pin (A) then engage it through one of the downstop holes and the rod inside the downstop tube (B).

Act on selective control valve lever to fully lower the pickup.

Check pickup height.

Repeat above procedure until the desired height is obtained.

A-Shaft locking pin
B-Downstop tube
