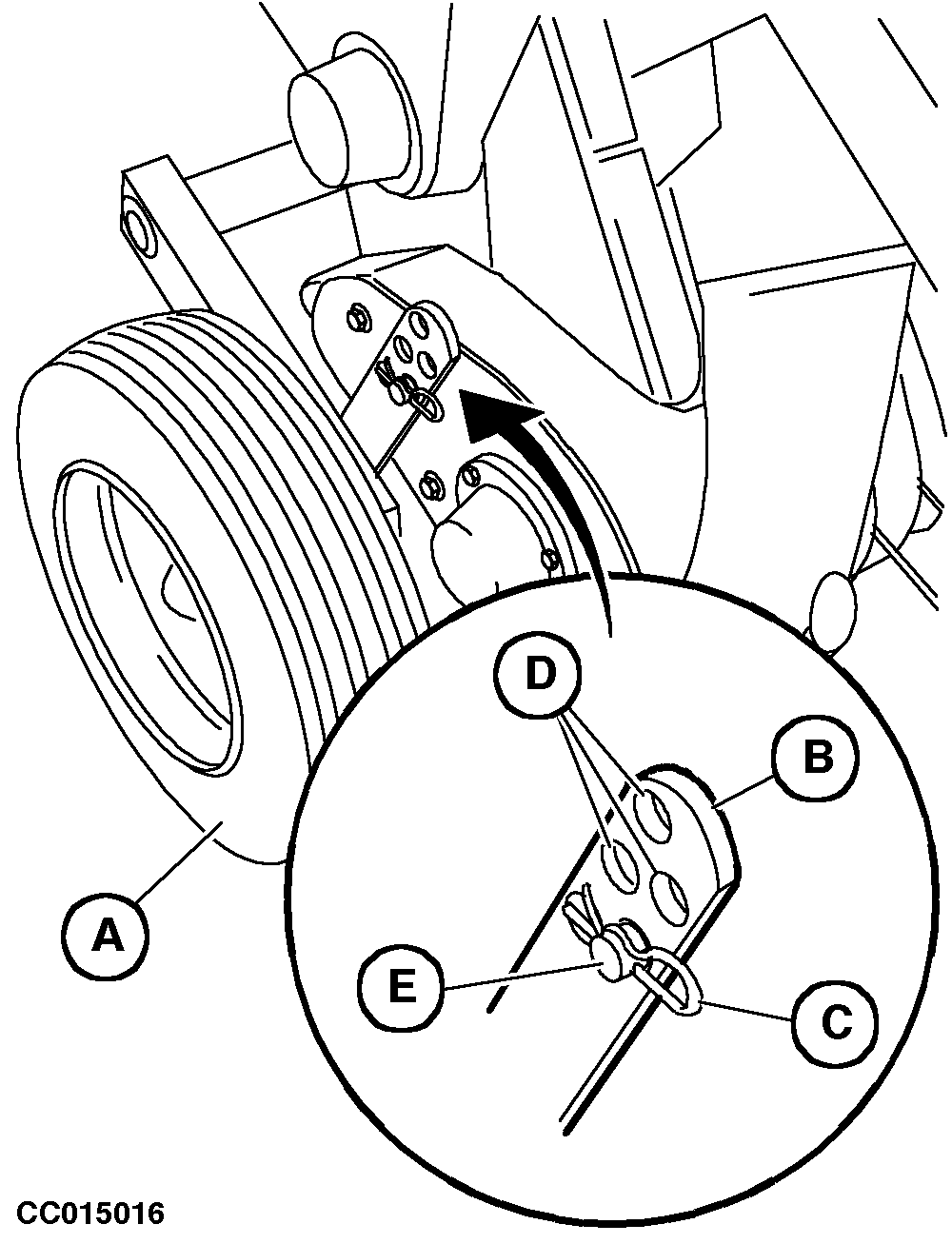

Adjusting Rotary Feeder Pickup Gauge Wheels (without Transport Position)IMPORTANT: Gauge wheels (A) are not designed to be constantly in contact with the ground. Adjust pickup gauge wheels as follows: 1. Adjust the pickup height.2. Act on selective control valve lever to fully lower the pickup. 3. Remove spring-locking pin (C) then choose one of the positioning holes (D) to fix support (B) on stud (E) so that gauge wheels are just above the ground (gauge wheels must be approximately at the same height as pickup teeth). Install spring-locking pin (C).
|
|
