Adjusting 2.00 m (6 ft 6.7 in.) Pickup Drive Chains (Baler with Rotary Feeder Mounted Below Feeding Channel or Double Rotary Feeder)

Adjusting main drive chain

1. Baler with rotary feeder mounted below feeding channel

Adjust tension of main drive chain as follows:

a. To ensure that all slack is removed from chain, close gate and engage PTO a few seconds. Shut off tractor engine.

b. Loosen nut (A).

c. Adjust tensioner (B) so that chain deflection at (C) is about 12 mm (0.47 in.).

d. Tighten nut (A).

e. Engage PTO a few seconds. Shut off tractor engine.

f. Check the chain deflection and adjust if necessary.

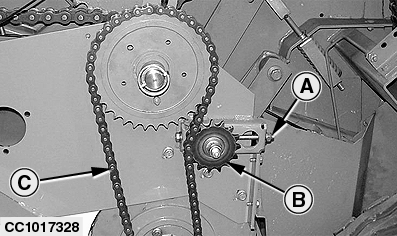

CC1018328


A-Nut
B-Tensioner
C-Deflection check point

OUCC006,000112B -19-02FEB07-1/3

2. Baler with double rotary feeder

Adjust tension of main drive chain as follows:

a. To ensure that all slack is removed from chain, close gate and engage PTO a few seconds. Shut off tractor engine.

b. Loosen nut (A).

c. Adjust tensioner (B) so that chain deflection to (C) is about 18 mm (0.7 in.).

d. Tighten nut (A).

e. Engage PTO a few seconds. Shut off tractor engine.

f. Check the chain deflection and adjust if necessary.

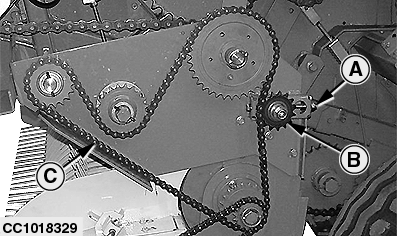

CC1018329


A-Nut
B-Tensioner
C-Deflection check point

OUCC006,000112B -19-02FEB07-2/3

Adjusting pickup drum drive chain

Adjust tension of pickup drum drive chain as follows:

1. To ensure that all slack is removed from chain, close gate and engage PTO a few seconds. Shut off tractor engine.

2. Loosen idler mounting screw (A).

3. Push idler (B) against chain so that chain deflection at (C) is about 12 mm (0.47 in.).

4. Tighten idler mounting screw (A).

5. Engage PTO a few seconds. Shut off tractor engine.

6. Check the chain deflection and adjust if necessary.

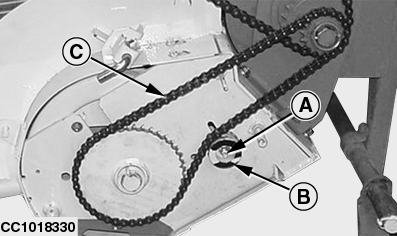

CC1018330


A-Idler mounting screw
B-Idler
C-Deflection check point

OUCC006,000112B -19-02FEB07-3/3
