Adjusting 2.00 m (6 ft 6.7 in.) and 2.20 m (7 ft 2.6 in.) Pickup Drive Chains (Baler with Rotary Feeder)

NOTE: To ensure that all slack is removed from chain, close gate and engage PTO a few seconds. Shut off tractor engine.

Adjusting main drive chain

Adjust tension of main drive chain as follows:

1. Fully loosen fixing screw (A) then press idler support (B) downward so that fixing screw (A) can be installed in one of the holes (C) which will allow the chain to be properly tightened.

IMPORTANT: Chain tension is correctly adjusted when chain deflection is 20 to 50 mm (0.8 to 2 in.).

2. If necessary, choose one of the three idler holes (D) positions so that the idler support can be fixed in one of the hole (C).

3. Firmly tighten fixing screw (A).

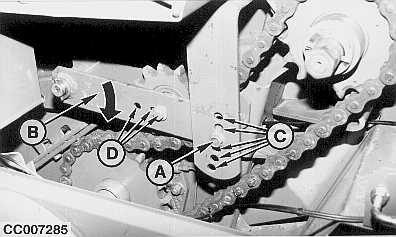

CC007285


A-Fixing screw
B-Idler support
C-Holes
D-Idler hole

OUCC006,000112E -19-29NOV06-1/2

Adjusting pickup drive chains

Adjust tension of pickup drive chain as follows:

1. Loosen the two idler support mounting screws (A).

2. Press idler support (B) against chain so that chain deflection to the opposite strand of idler is about 10 mm (0.39 in.).

3. Tighten the two mounting screws (A).

NOTE: Intermediate drive chain (C) tension does not require adjustment.

Adjusting left-hand auger drive chain

Adjust tension of left-hand auger drive chain as follows:

1. Loosen the idler support mounting screw (E).

2. Press idler (D) against chain so that chain deflection to the opposite strand of idler is about 10 mm (0.39 in.).

3. Tighten mounting screw (E) to 81 N·m (120 lb-ft).

Engage PTO a few seconds.

Check deflection of the chains. Repeat adjustments if necessary.

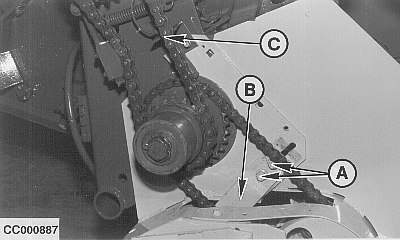

CC000887

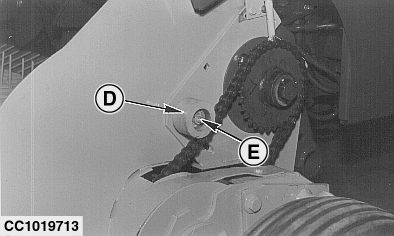

CC1019713


A-Mounting screw
B-Idler support
C-Intermediate drive chain
D-Idler
E-Mounting screw

OUCC006,000112E -19-29NOV06-2/2
