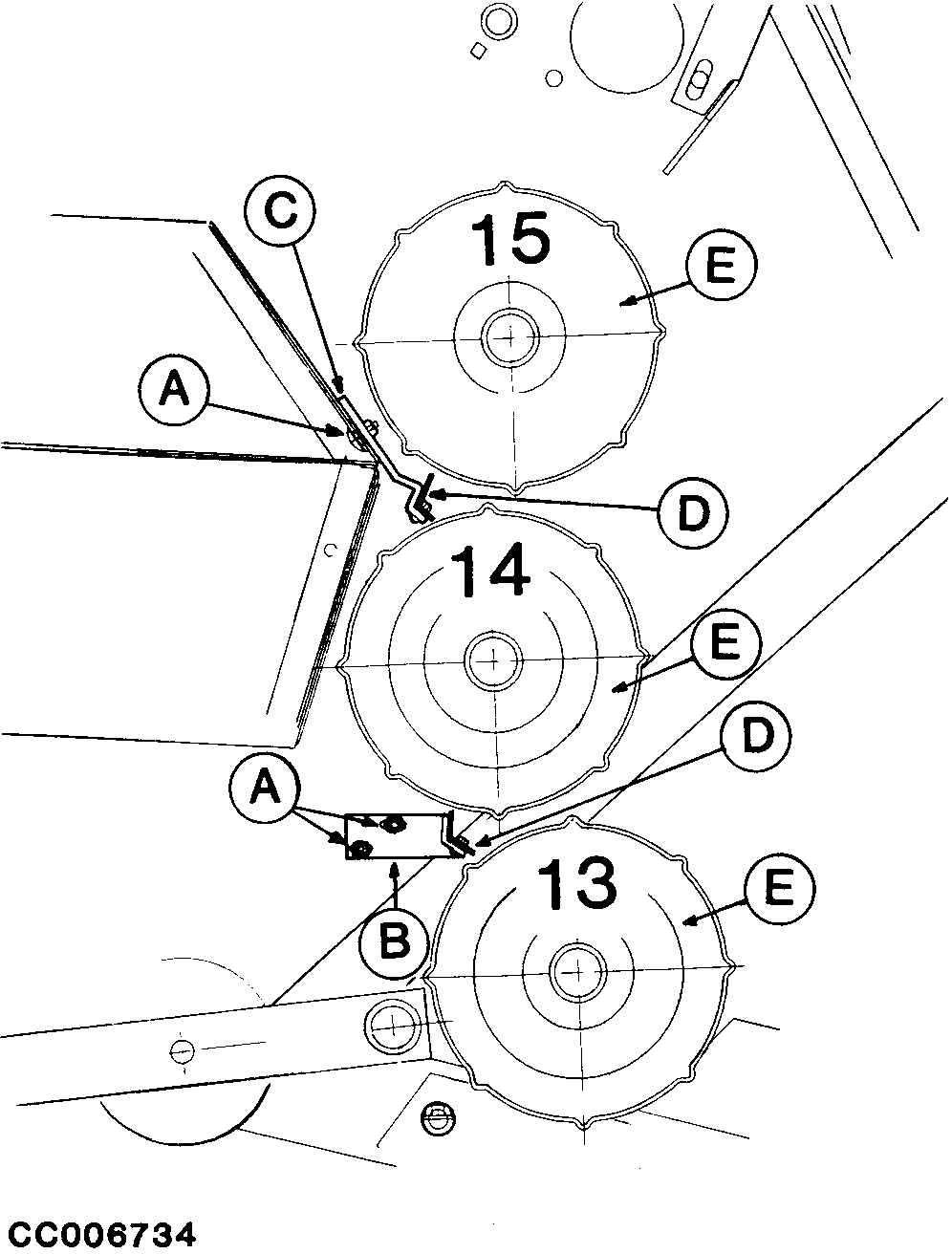

Adjusting Roll (NR 13 and NR 14) Strippers

1. Loosen attaching screws (A) of stripper supports (B) and (C).

2. Slide supports (B)-(C) so that rubber bands (D) are positioned as close as possible to the rolls (E) without contact.

3. Tighten attaching screws (A).

NOTE: Rubber bands (D) can be easily replaced.


A-Attaching screw
B-Support
C-Support
D-Rubber band
E-Roll

CC006734

OUCC006,000112F -19-11AUG06-1/1
