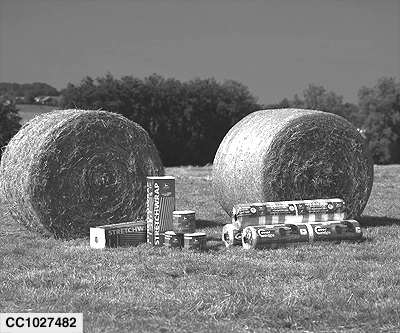

Selecting Net Roll
In order to achieve optimum performance, we recommend the use of
John Deere
net roll which meets the following specifications:
-
Material: High density polyethylene.
-
Density: Minimum 10 g/m
2
± 10% (0.033 oz/sq.ft. ± 10%).
-
Strength (Tying direction): 900 N/500 mm (662 lb/20 in.).
-
Elongation: 9% ± 1%.
-
Length: 2000 or 3150 m (6 ft 6.7 in. or 10 ft 4 in.).
-
Material width for standard net tying device: 1222 +16 -11 mm (3 ft 11.7 in. to 4 ft 0.7 in.).
-
Material width for CoverEdge net tying device: 1300 mm (4 ft 3.2 in.).
-
Core width for standard net tying device: Maximum 1255 mm (4 ft 1.4 in.).
-
Core width for CoverEdge net tying device: Maximum 1320 mm (4 ft 4 in.).
-

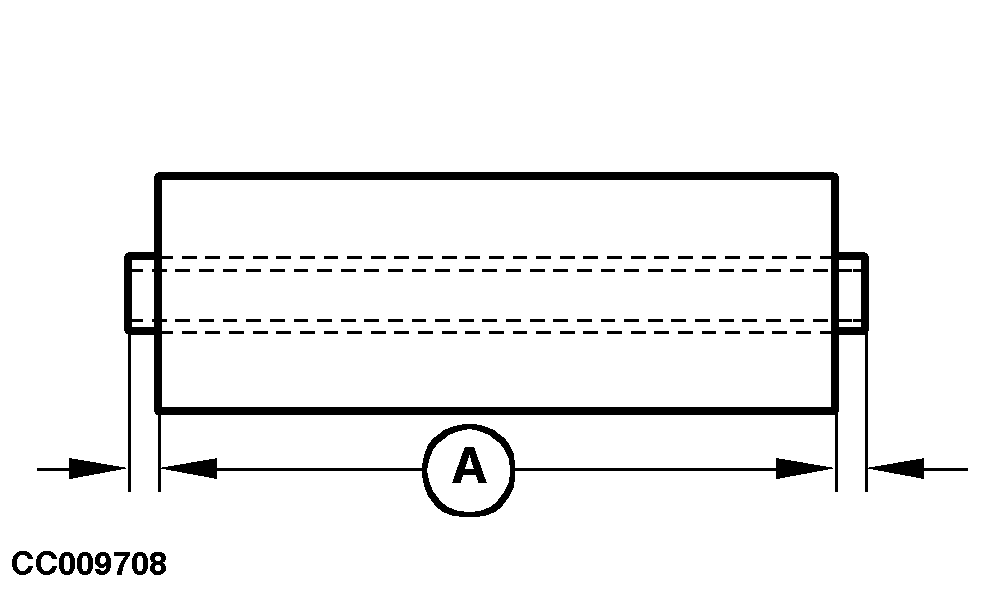

Material/Core offset (A): 2 to 16 mm (0.08 to 0.63 in.) on both sides.
IMPORTANT:
Net roll types with higher density can be used. In this case, make sure that net device is well adjusted and knife well sharpened. Refer to "Service" Section.
For baler with standard net tying device, net roll diameter must not exceed 32 cm (1 ft 0.6 in.).
For baler with CoverEdge net tying device, net roll diameter must not exceed 30 cm (11.8 in.).
|
A-Material/Core offset
|
