Adjusting Rotary Feeder Pickup Caster Gauge Wheels

IMPORTANT: Caster gauge wheels are not designed to be in constant contact with the ground.

1. Adjust the pickup height.

2. Act on selective control valve lever to fully lower the pickup.

3. Remove spring-locking pin (A).

4. Choose one of the positioning holes (B) to fix support (C).

NOTE: Caster gauge wheel must be approximately at the same height as pickup teeth, and just above the ground.

5. Install spring-locking pin (A).

Repeat procedure on opposite side.

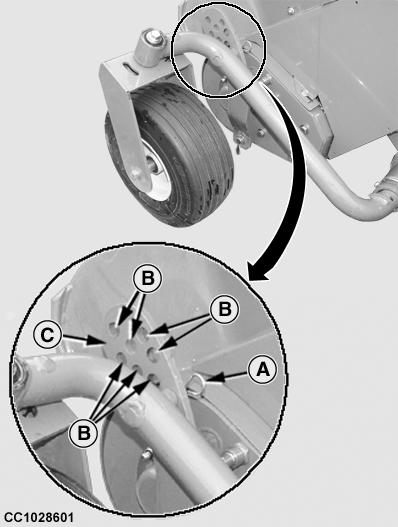

A-Spring-locking pin
B-Positioning holes
C-Support

CC1028601

OUCC006,00011D6 -19-15DEC06-1/1
