Connecting Telescoping Hook-Up to Gear Case Input Shaft

CAUTION: Never attach telescoping hook-up while the tractor is running. Never use a steel hammer to connect or disconnect the hook-up on gear case input shaft.

IMPORTANT: Keep hook-up and gear case input shaft splines free from paint, dirt, chaff and burrs.

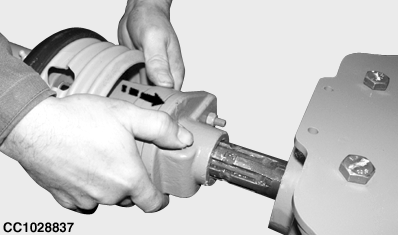

Shear bolt clutch:

Press locking device.

Slide telescoping hook-up onto gear case input shaft until lock engages.

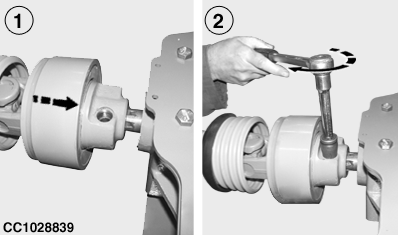

Cam-type cut out clutch:

Unscrew the clamping cone.

Engage telescoping hook-up to the gear case input shaft, until the hole is positioned over the gear case input shaft annular groove.

Tighten the clamping cone to specified torque.

Specification

CAUTION: Before starting work, make sure all locks are securely engaged and safety chains are attached (if equipped).

Reinstall all shields which have been removed to attach the hook-up.

Immediately replace any damaged plastic hook-up shields.

OUCC006,00011E4 -19-10JAN07-1/1
