Adjusting Net Tying Strength (Baler with Standard Net Tying Device)

2. Remove cotter pin (A) and washer (B).

NOTE: The link (D) is factory set in position (1).

3. Position pin (C) in one of the three positions (1, 2 or 3) according to the desired net tying strength.

4. Install washer (B) and cotter pin (A).

5. Repeat procedure on opposite side.

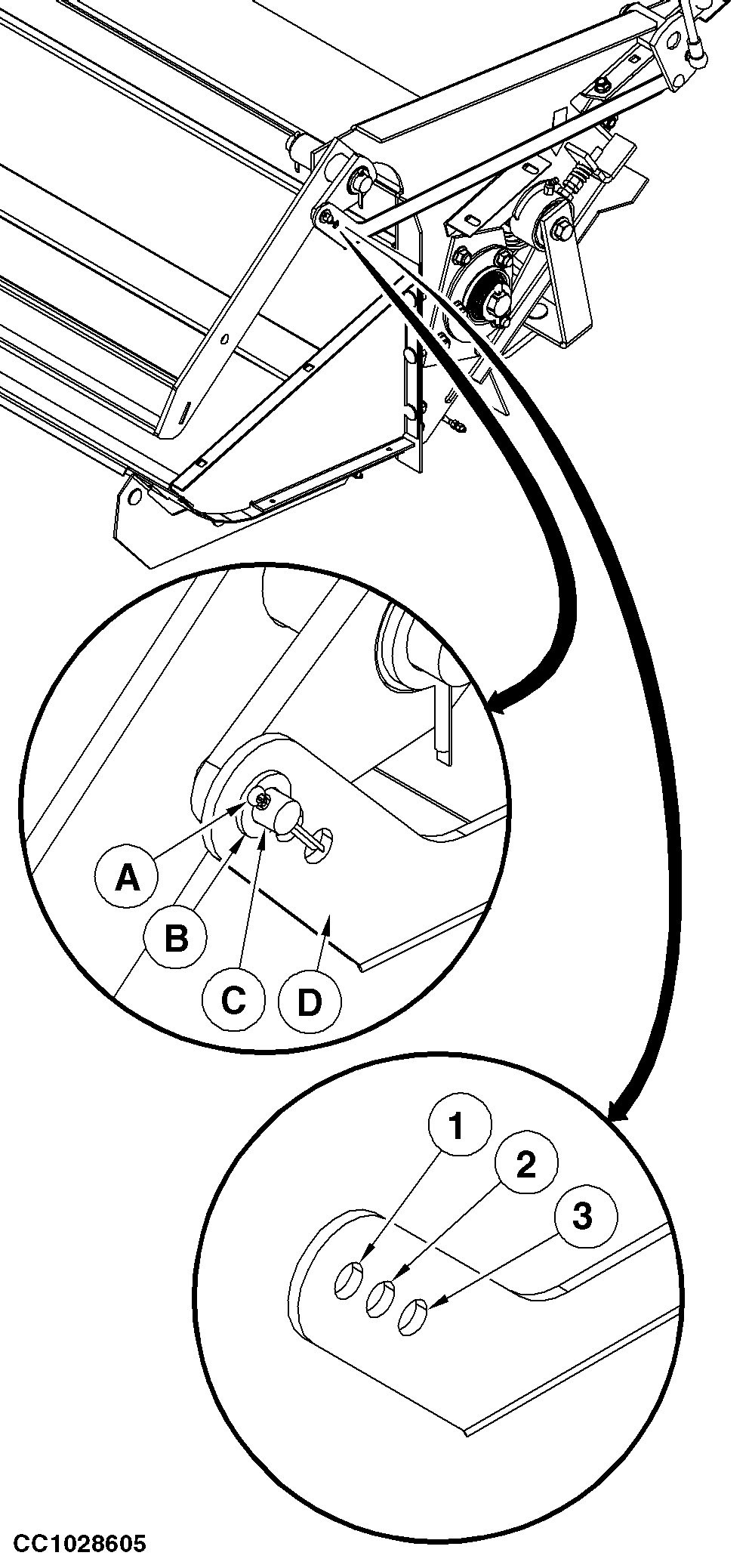

A-Cotter pin
B-Washer
C-Fastener pin
D-Link
1-Standard strength position
2-Medium strength position
3-High strength position

OUCC006,00011E8 -19-02FEB07-1/1
