Adjusting Net Cut Switch (Baler with Standard Net Tying Device)

1. Open right-hand door.

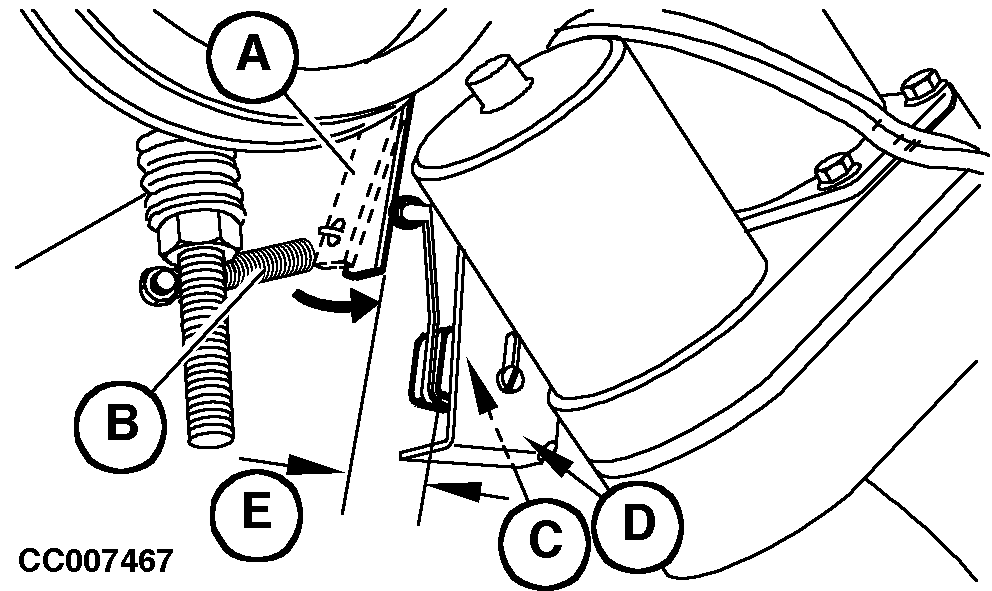

2. Check if plate (A) is moving freely. Check tension of spring (B).

3. Fully push on plate (A) in the direction indicated by the arrow, then adjust switch (C) and/or switch support (D) so that specified distance (E) between bottom of switch and plate (A) is achieved.

CC007467


A-Plate
B-Spring
C-Switch
D-Switch support
E-7 ± 1 mm (0.27 ± 0.04 in.)
