Moving Rotary Feeder Pickup Gauge Wheels in Transport Position

1. Remove shaft locking pin (C).

2. Remove spring-locking pin (A).

3. Secure support (B) on gauge wheel arm (D) with spring-locking pin (A).

4. Rotate gauge wheel arm (D) and slide it as shown. Secure it with shaft locking pin (C).

Repeat procedure on opposite side.


A-Spring-locking pin
B-Support
C-Shaft locking pin
D-Gauge wheel arm

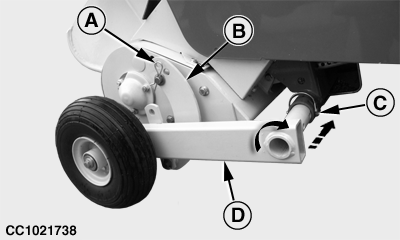

CC1021738

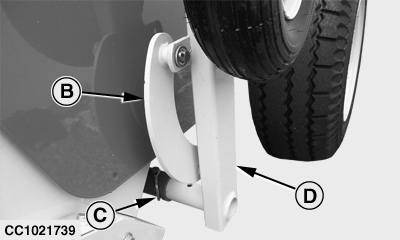

CC1021739

OUCC006,000122E -19-12JAN07-1/1
