Every 10 Hours - Pickup Drum Drive Chain Without Automatic Chain Oiling System

CAUTION: To help prevent injury, do not lubricate chain with machine running.

Remove shielding.

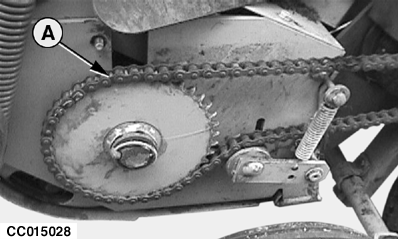

Generously apply SAE 30 or heavier oil to chain (A) every 10 hours of operation.

Lubricate chain (A) immediately after operation when the chain is still warm. Let the machine stand idle for a short period of time to ensure effective oil penetration, resulting in longer chain life.

Reinstall shielding.

OUCC006,000122F -19-02FEB07-1/1
