Adjusting Rotary Feeder Reverse Sensor (Baler with BaleTrak Plus Control Only)

Check that rotary feeder is not in reverse operating mode. See "Unplugging Baler with Rotary Feeder" in "Operating the Baler - General purposes" section.

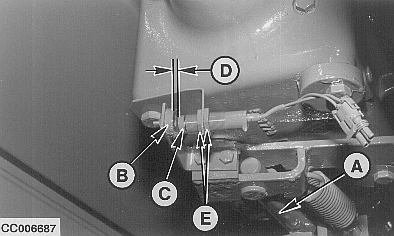

With hydraulic cylinder (A) fully retracted, check that magnet (B) is aligned with sensor (C).

Distance (D) should be 10 ± 1 mm (0.4 ± 0.04 in.). If not, loosen lock nuts (E), then slide sensor (C) until specified distance (D) is achieved.

Slightly tighten lock nuts (E).

A-Hydraulic cylinder
B-Magnet
C-Sensor
D-10 ± 1 mm (0.4 ± 0.04 in.)
E-Lock nuts

OUCC006,0001230 -19-29NOV06-1/1
