The BaleTrak Plus monitor provides the operator with information to help making well-shaped bales and automatically operates the tying system, the rotary feeder and the precutter device (if equipped).

The monitor settings can be tailored to suit specific requirements. In most cases, adjustments can be made from the tractor seat.

The system is preset, functional, and ready to use. It is recommended to operate the baler briefly with the factory settings, to be familiar with programmed settings before tailoring the settings.

The BaleTrak Plus monitor also reports alarms or malfunctions. The monitor allows to check and calibrate baler electrical components.

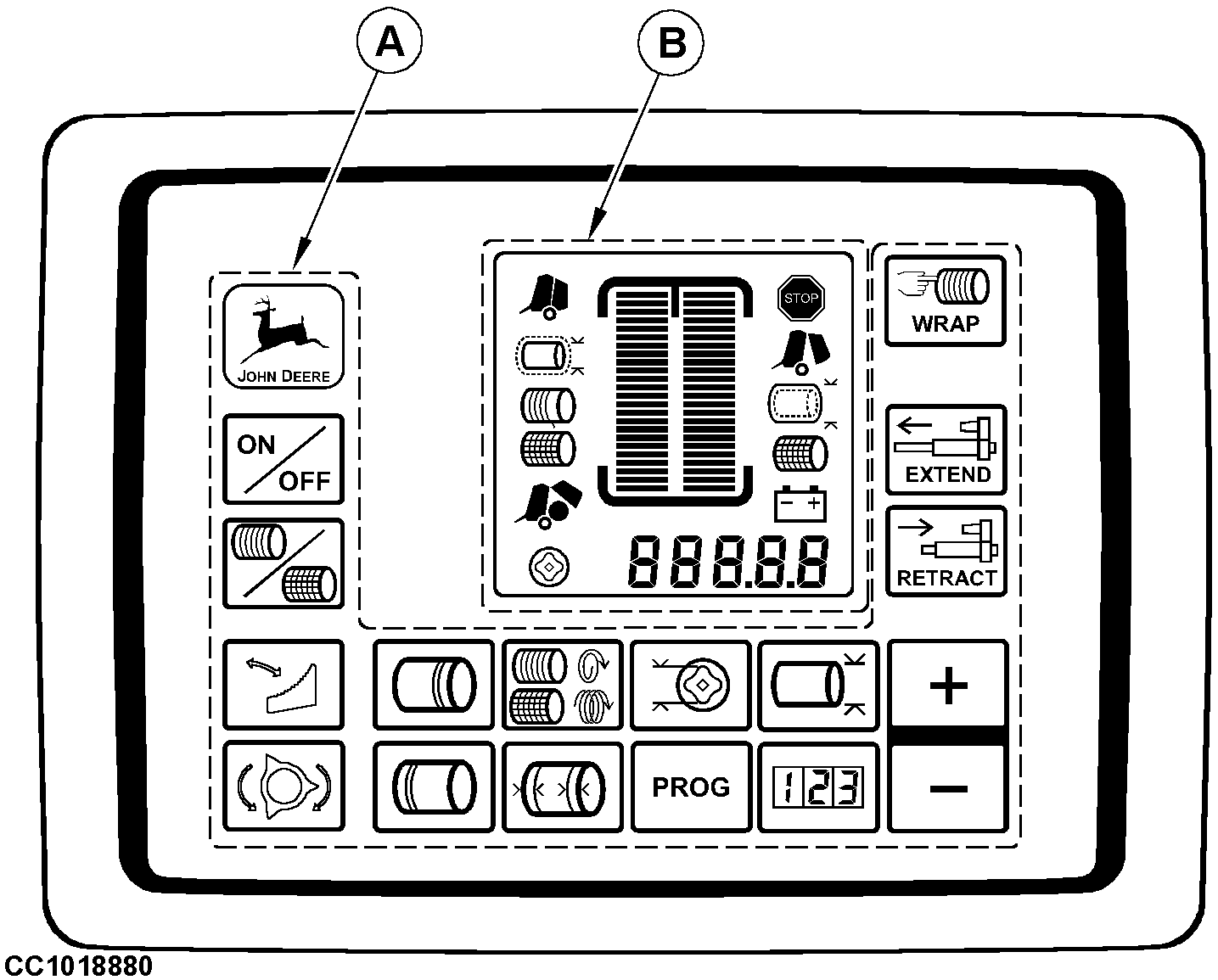

The BaleTrak Plus monitor includes:

• A function keyboard (A) with sensitive keys (See "BaleTrak Plus Monitor Keyboard Description" in this section).
• A Liquid Crystal Display (LCD) screen (B) (See "LCD Screen Description" in this section).
