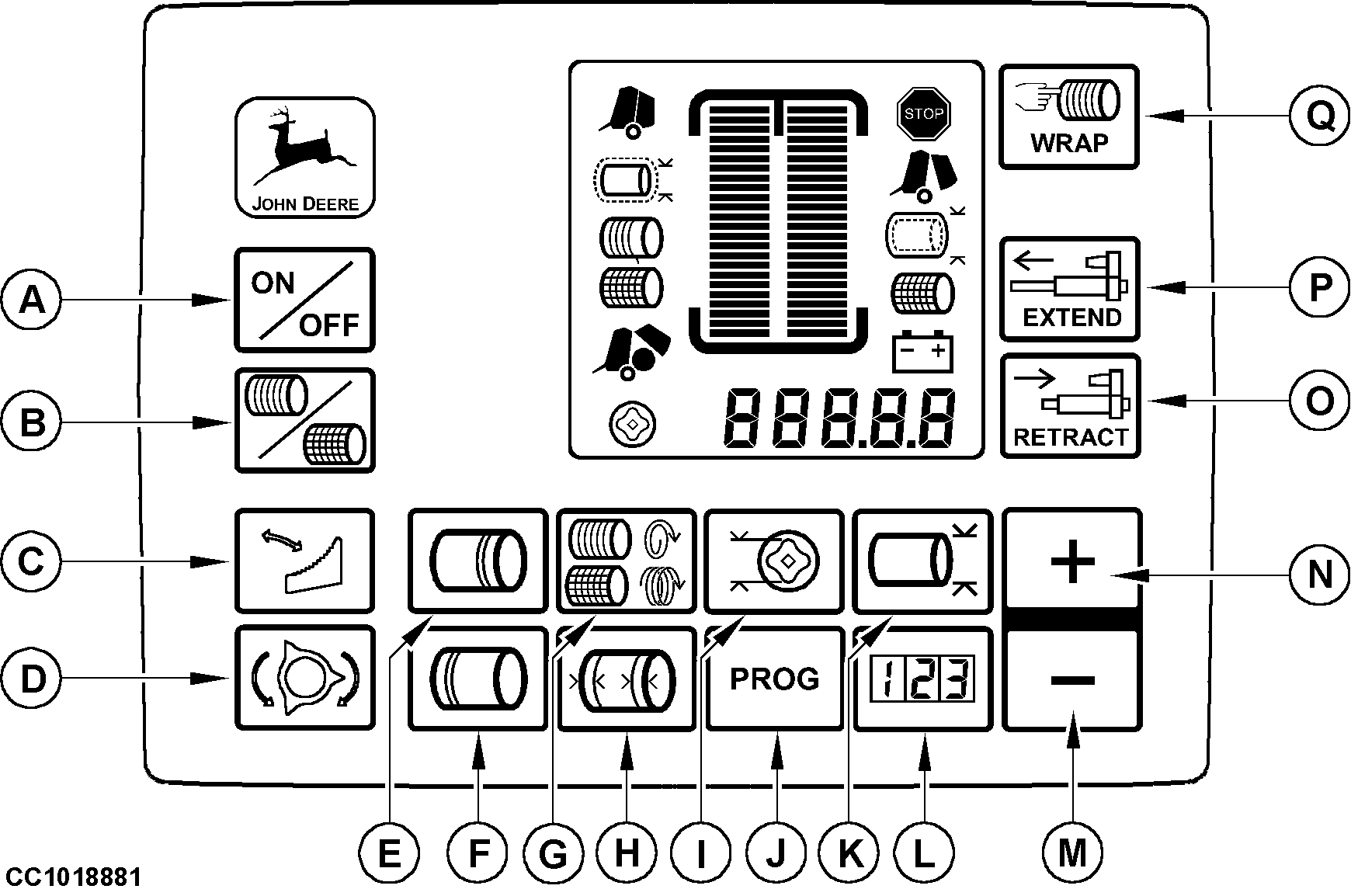

A-ON/OFF key
B-Twine or net tying key
C-Precutter knife key (if equipped)
D-Rotary feeder reverse key
E-Number of twine coils at tying end

F-Number of twine coils at tying start
G-Twine spacing/Number of net turns
H-Tying end distance

I-Not activated
J-Program key
K-Not activated
L-Bale counters
M-Minus key

N-Plus key
O-Retract key
P-Extend key
Q-Manual start of tying cycle

NOTE: When any key is pressed, buzzer will beep.

A short pressure on "PLUS" or "MINUS" key will increase or decrease selected value.

A long pressure on "PLUS" or "MINUS" key accelerates value change.
