Every 4000 Bales or Yearly - Draining and Refilling Gear Case (Baler with Rotary Feeder Mounted Below Feeding Channel or Double Rotary Feeder)

Drain and refill gear case (E) every 4000 bales or yearly whichever come first.

Drain the oil while it is hot (i.e. after operation). Pull out refill plug (C) and drain plug (A), then drain oil into a suitable receptacle.

Clean drain plug (A) before reinstalling it, then add 1.7 l (0.45 US gal) of oil. This amount corresponds to the level plug (B) bore.

Use a type of oil specified under "Gear Oil" in this section.

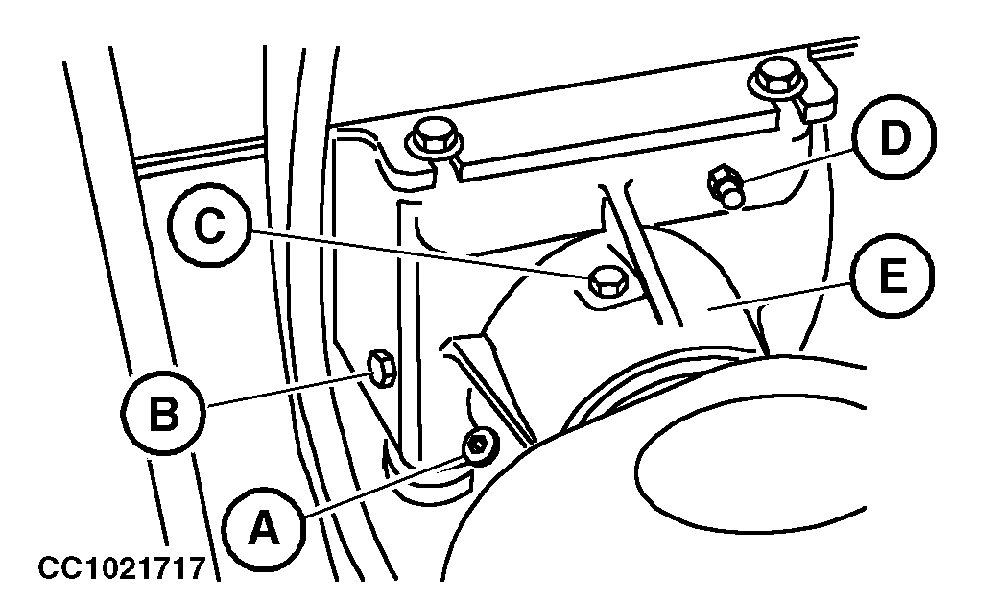

A-Drain plug
B-Level plug
C-Refill plug
D-Breather
E-Gear case
