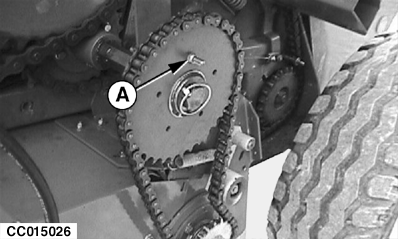

Replacing Pickup Drive Shear Bolt (Baler with Rotary Feeder Mounted Below Feeding Channel or Double Rotary Feeder)Line up hub and sprocket holes, then install a 10 x 35 mm grade 8.8 cap screw (A) and lock nut. Reinstall all shields previously removed.
|
|
OUCC006,000123B -19-02FEB07-1/1 |
