Removing Net Wrapped Around Feed Rolls (Baler with CoverEdge Net Tying Device)

causym CAUTION: Avoid injury from entanglement in moving rolls. Disengage PTO and shut off tractor before servicing.

If net wraps around feed rolls:

1. Extend net actuator to just release the rubber roll brake.

2. Shut off tractor engine.

3. Open the net tying cover and place security device in lock position.

4. Gather the free end of the net.

5. Cut the net material.

IMPORTANT: Do not cut net material from rubber roll. Any knife cuts in the rubber roll covering may result in more frequent wrapping around the rolls and may require roll replacement.

6. Pull the surface wrap, rotating the feed rolls in reverse.

7. Wipe off feed rolls and check for any sticky material. If necessary, rubber roll may be washed with soap and water.

IMPORTANT: Never use solvents to clean rubber roll and never apply talcum to rubber roll.

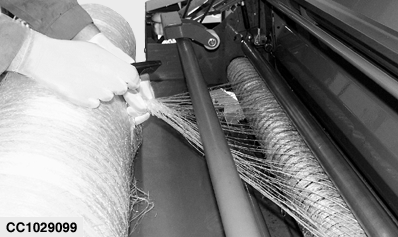

CC1029099

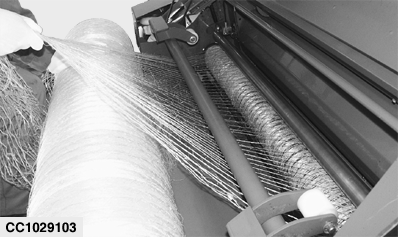

CC1029103

OUCC006,000123E -19-22DEC06-1/1
