Removing Net Wrapped Around Feed Rolls (Baler with Standard Net Tying Device)

IMPORTANT: Do not cut net material from rubber roll. Any knife cuts in the rubber roll covering may result in more frequent wrapping around the rolls and may require roll replacement.

If net wraps around the rubber roll:

2. Extend actuator to just release the feed roll brake.

3. Open the net box.

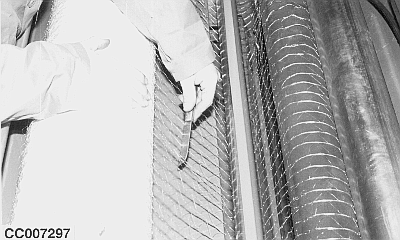

4. Cut the net material between the net roll and the spiral idler roll.

5. Pull the surface wrap, rotating the rubber feed roll in reverse.

6. Wipe off feed rolls and check for any sticky material. If necessary, roll may be washed with soap and water. NEVER use solvents to clean rubber feed roll.

7. Apply talcum powder to rubber feed roll.

OUCC006,000123F -19-04DEC06-1/1
