Removing and Installing Net Tying Drive Belt (Baler with CoverEdge Net Tying Device)

1. Open right-hand side door.

2. Retract net actuator (A) to release belt tension.

3. Remove belt (B) from sheaves.

4. Install a new belt as shown.

5. Adjust belt tension. See "Adjusting Net Tying Drive Belt Tension" in this section.

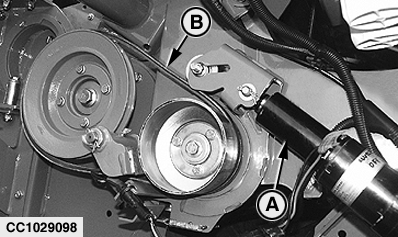

CC1029098


A-Net actuator
B-Belt
