Net Roll Diameter Indicator (Baler with CoverEdge Net Tying Device)

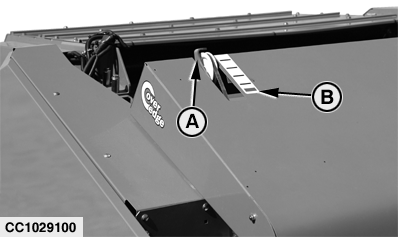

The net roll diameter indicator (A) allows operator to know the net roll diameter left.

When indicator (A) is in position shown, net roll diameter is maximum.

When indicator (A) reaches red band (B), net roll diameter is minimum.

A-Net roll diameter indicator
B-Red band

OUCC006,0001247 -19-02FEB07-1/1
