Removing and Installing Net Knife (Baler with Standard Net Tying Device)

causym CAUTION: Prevent personal injury by wearing gloves to handle net knife.

1. Note position of knife cutting edge for reinstallation.

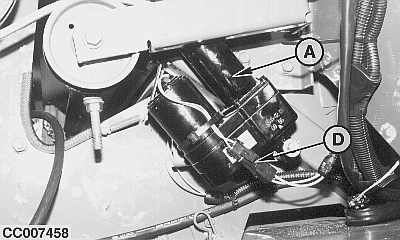

2. Slowly extend actuator (A) so that knife bolts (B) are fully accessible from the side opening (C), then disconnect actuator plug (D) .

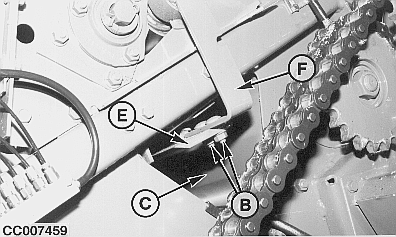

3. Remove bolts (B) on each side of knife (E), then remove knife (E) from bracket (F).

4. Install knife (E) on bracket (F) in the same position as before removal, i.e. with beveled surface down and knife under the bracket (F).

IMPORTANT: Round heads of bolts must be up. This will prevent the hardware from tearing the net tying material.

5. Secure knife (E) by means of bolts (B).

6. Tighten the knife fitting bolts to specified torque:

Specification

Knife Fitting Bolts -Torque 55 N·m (40 lb-ft)

7. Reconnect actuator plug (D) and retract actuator (A).


A-Actuator
B-Bolts
C-Opening
D-Actuator plug
E-Knife
F-Bracket

TS268
CC007458
CC007459

OUCC006,0001249 -19-05JAN07-1/1
