Setting Tractor Selective Control Valves

Set tractor selective control valve flow to approximately 40 L/min (10.55 US gal/min). See your tractor operator's manual to make adjustments.

For 3000 Series tractors, make sure the SCV lever returns to neutral position when released.

For 5000 Series tractors, do not push SCV lever fully forward to allow lever to return to neutral when released.

For 6000 and 7000 Series tractors, adjust SCV lever for no detent, so lever returns to neutral when released.

For tractors with detent time, set detent time at "0".

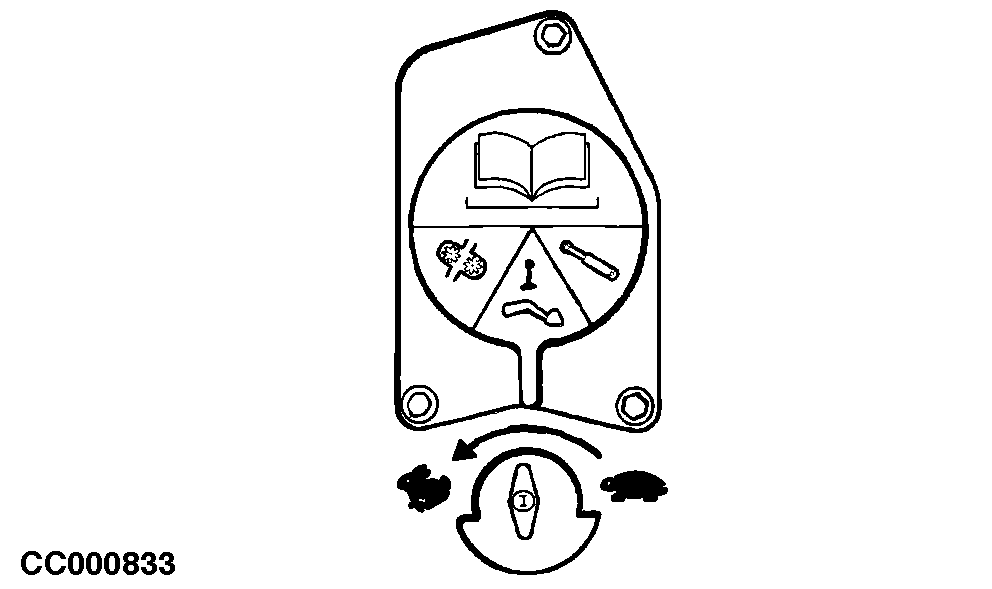

CC000833

OUCC006,000124F -19-15JAN07-1/1
