Adjusting Bale Density

NOTE: To adjust bale density, close gate. This will allow bale density knob (A) to be turned more easily.

To obtain maximum bale density, loosen locking ring (B) and turn knob (A) clockwise until seated. If less compact bales are required, turn knob counterclockwise (maximum four turns from seated position). Tighten locking ring (B).

For initial adjustment on a new baler:

Loosen locking ring (B) and turn knob (A) clockwise until seated. Turn knob (A) counterclockwise 1 ¹ / ₂ turns and tighten locking ring (B).

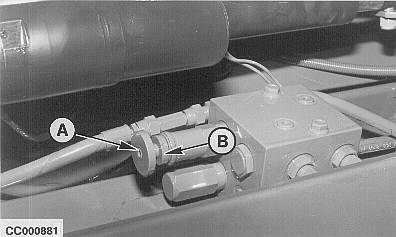

A-Bale density knob
B-Locking ring

OUCC006,0001254 -19-10JAN07-1/1
