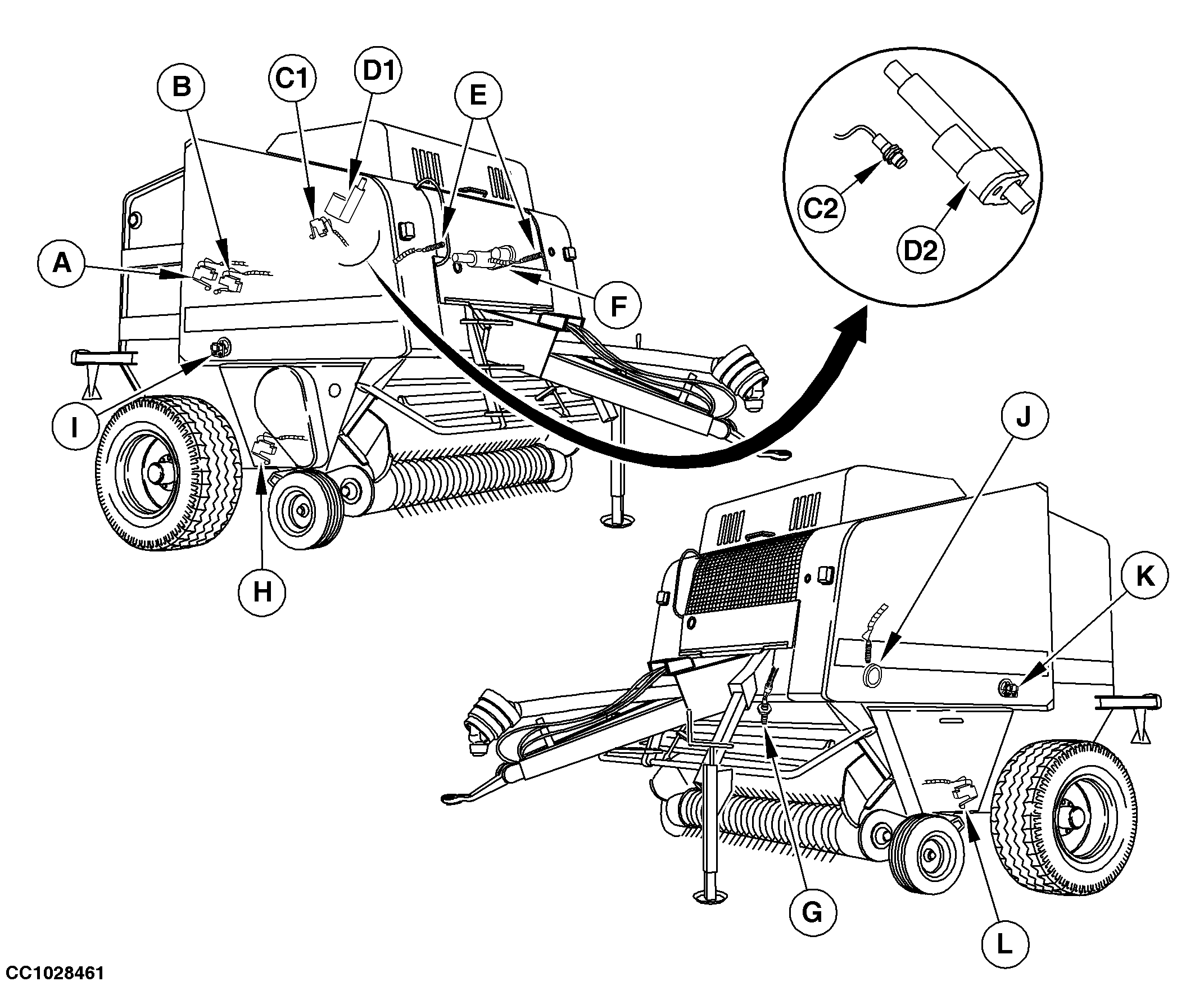

A-Full size bale switch
B-Oversize/gate switch
C1-Net cut switch (baler with standard net tying)
C2-Net cut sensor (baler with CoverEdge net tying)
|
D1-Net actuator (baler with standard net tying)
D2-Net actuator (baler with CoverEdge net tying)
E-Twine pulley sensors
|
F-Twine actuator
G-Rotary feeder reverse sensor
H-Right knife sensor
I-Right bale shape potentiometer
|
J-Baler rotation speed sensor
K-Left bale shape potentiometer
L-Left knife sensor
|
