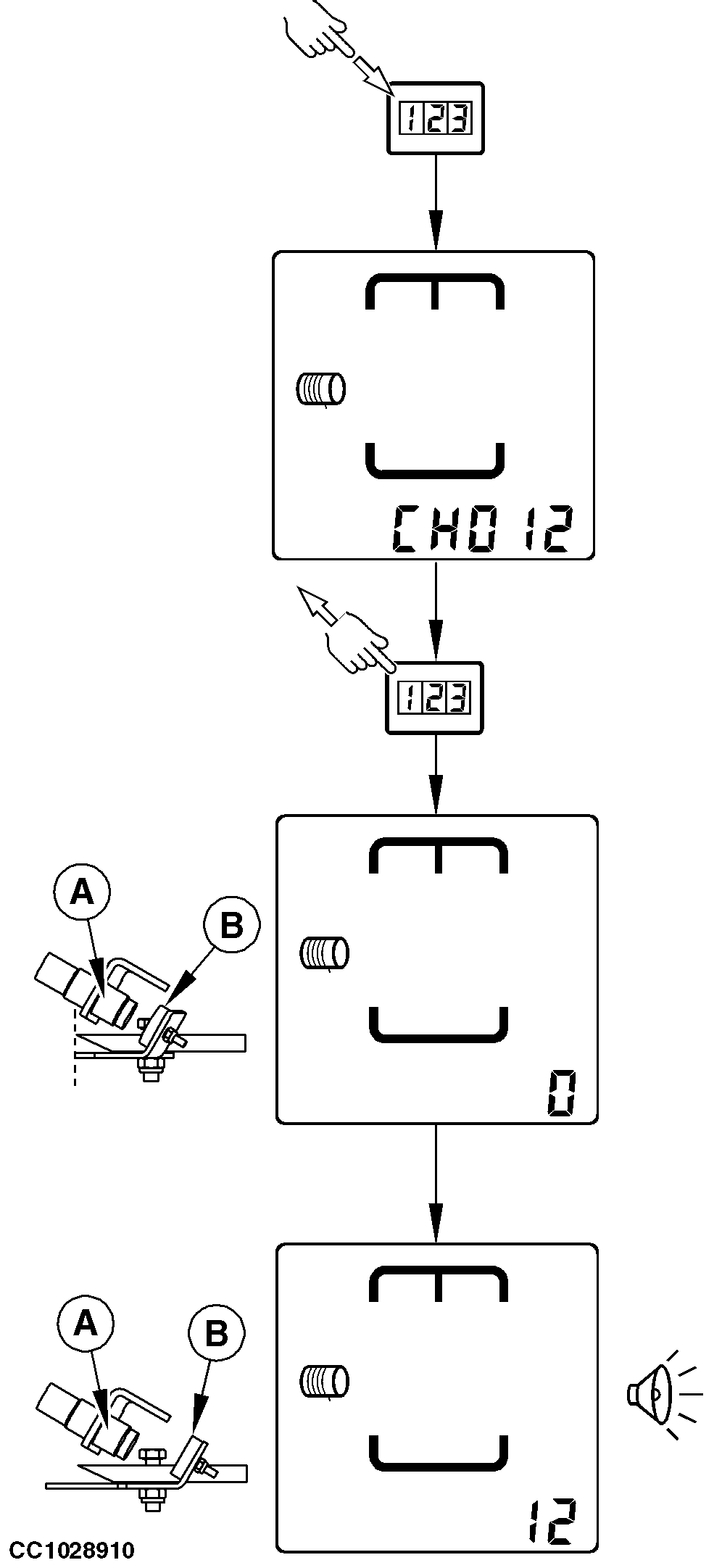

Channel 012: Test of Net Cut Sensor (Baler with CoverEdge™ Net Tying Device)"CH012" allows to test the net cut sensor. The monitor displays "0" when sensor (A) detect magnet (B). The monitor displays "12" with a continuous beep when sensor (A) does not detect magnet (B). NOTE: See "Adjusting Net Cut Sensor" in "Service" section to adjust sensor.
|
|
|
CoverEdge is a trademark of Deere & Company | OUCC006,000125E -19-26SEP07-1/1 |
