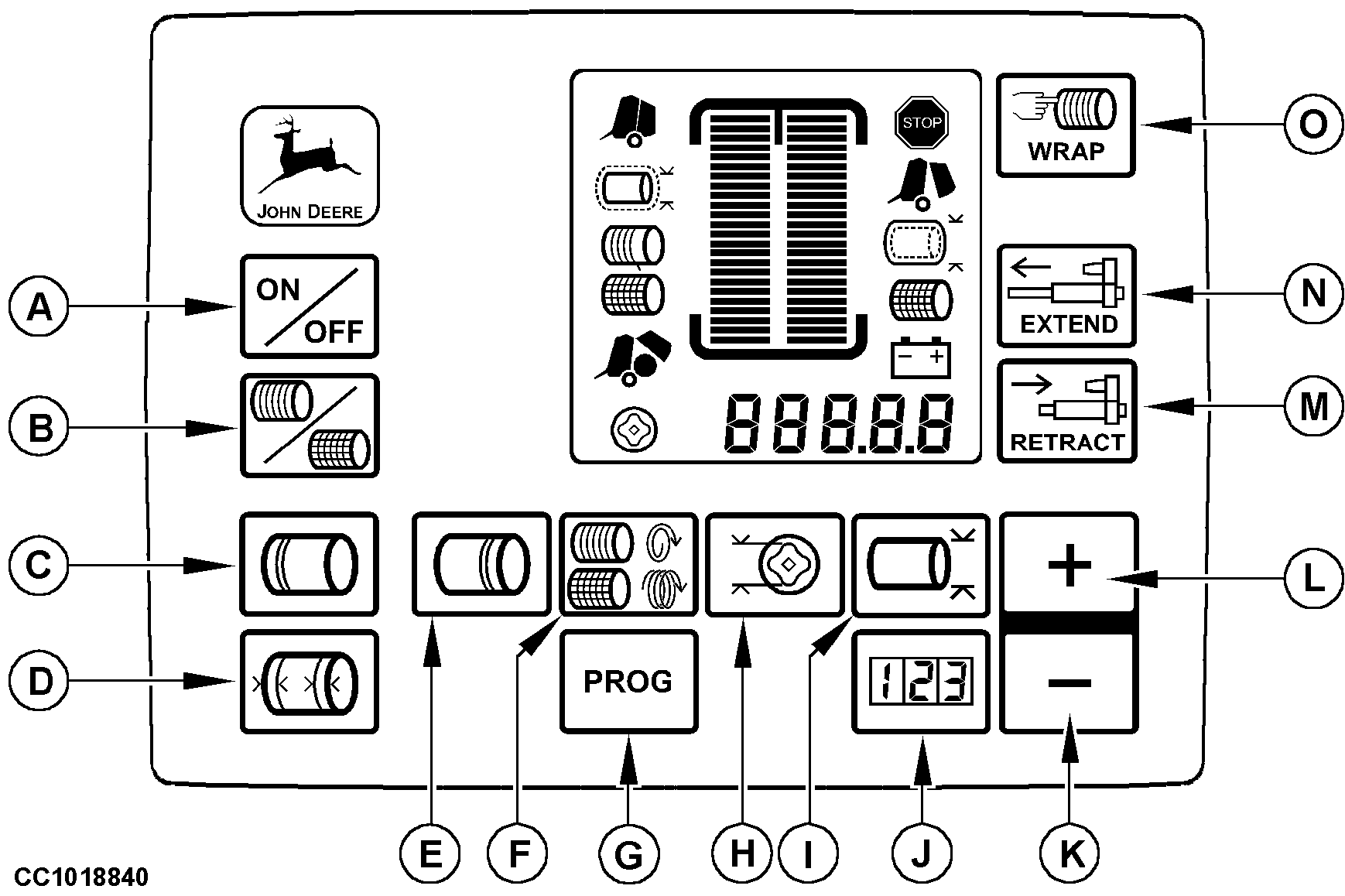

A-ON/OFF key
B-Twine or net tying key
C-Number of twine coils at tying start
D-End tying distance

E-Number of twine coils at tying end
F-Twine spacing/Number of net turns
G-Program key

H-Not activated
I-Not activated
J-Bale counters
K-Minus key

L-Plus key
M-Retract key
N-Extend key
O-Manual start of tying cycle

NOTE: When any key is pressed, buzzer will beep.

A short pressure on "PLUS" or "MINUS" key will increase or decrease selected value.

A long pressure on "PLUS" or "MINUS" key accelerates value change.
