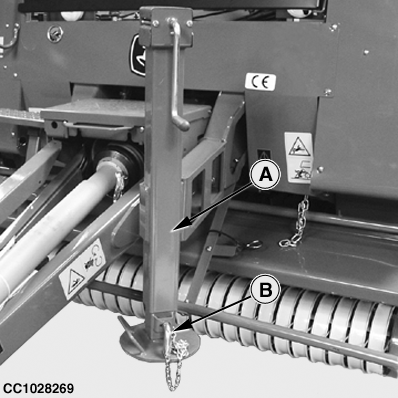

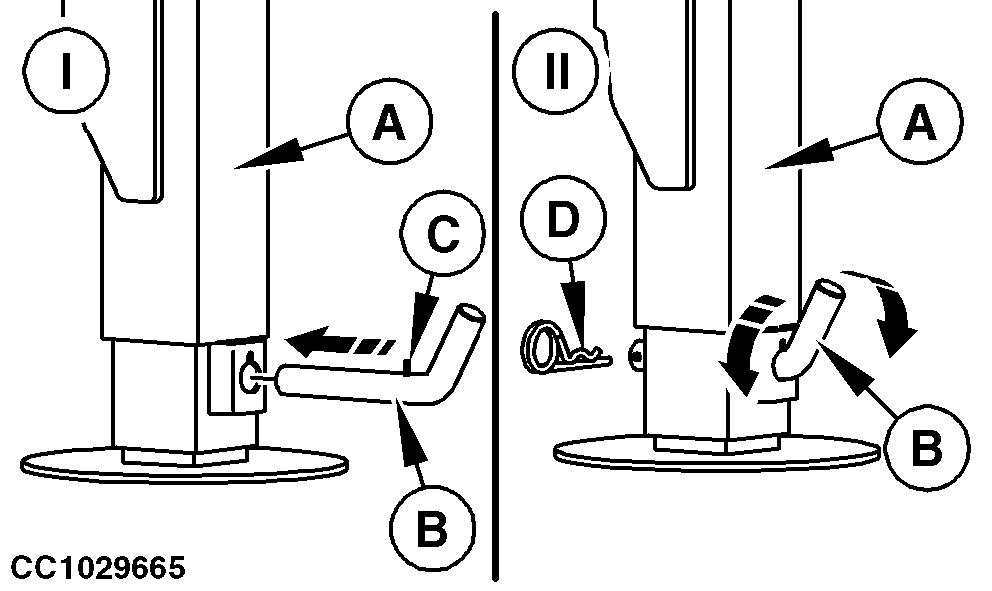

Storing Jackstand (from S.N. 60000)After hitching to tractor, secure jackstand (A) in its storage position as shown. Secure jackstand (A) with pin (B) as follows: 1. Insert pin (B) as shown in drawing (I).2. Turn pin (B) as shown in drawing (II) to secure jackstand in storing position. IMPORTANT: Make sure that cotter pin (C) is correctly inserted. 3. If equipped, insert quick-lock pin (D) in pin (B) as shown in drawing (II).
|
|
OUCC006,00012F5 -19-24SEP07-1/1 |
