Using Jackstand (from S.N. 60000)

Before detaching baler from tractor, remove jackstand (A) from storage position and place it in position as shown.

Secure jackstand (A) with pin (B) as follows:

1. Insert pin (B) as shown in drawing (I).

2. Turn pin (B) as shown in drawing (II) to secure jackstand.

IMPORTANT: Make sure that cotter pin (C) is correctly inserted.

3. If equipped, insert quick-lock pin (D) in pin (B) as shown in drawing (II).


A-Jackstand
B-Pin
C-Cotter pin
D-Quick-lock pin

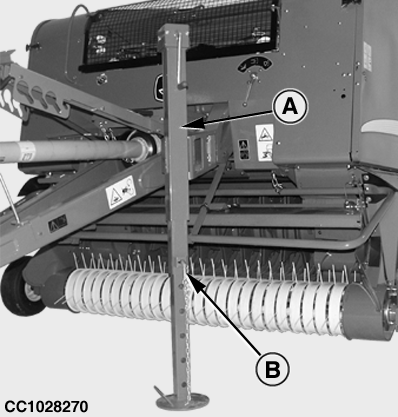

CC1028270

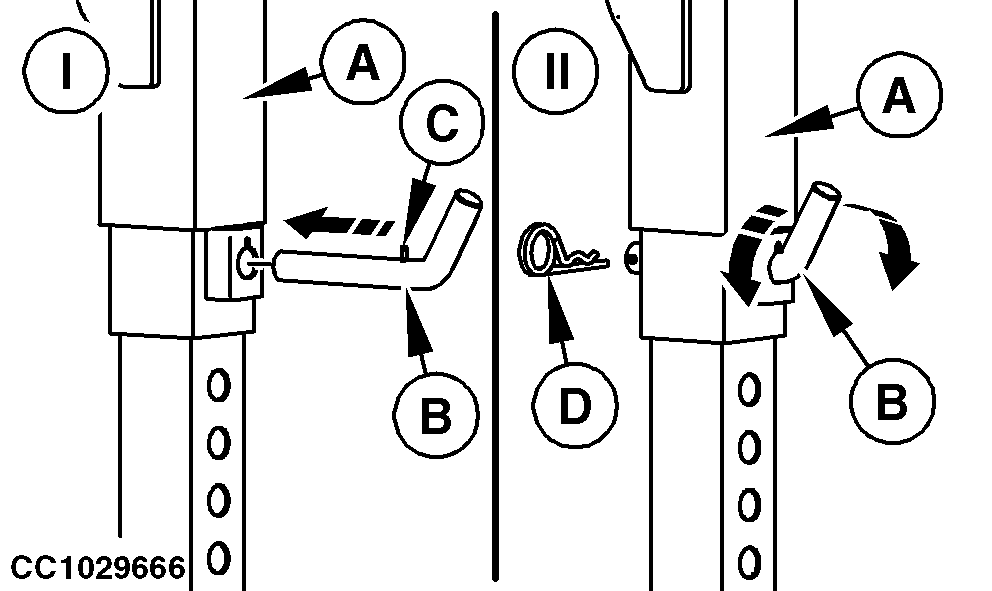

CC1029666
