Channel 012: Test of Net Cut Switch (Baler with Standard Net Tying Device)

"CH012" allows to test the net cut switch.

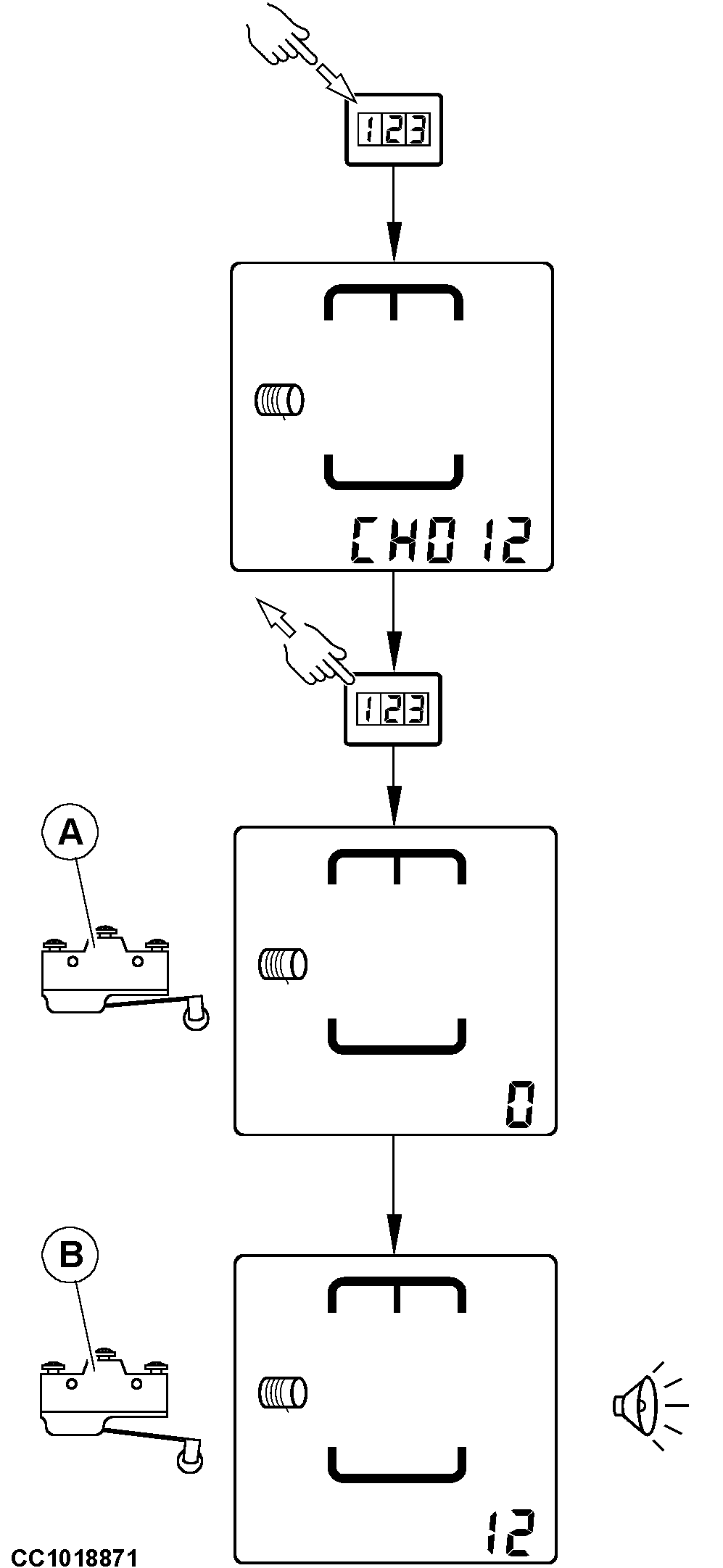

The monitor displays "0" when the switch is closed (A) and "12" with a continuous beep when the switch is open (B).

If this test is NOT OK, see your John Deere dealer.

NOTE: See "Adjusting Net Cut Switch" in "Service" section to check the switch adjustment.

A-Net cut switch closed
B-Net cut switch opened

OUCC006,00012F9 -19-04OCT07-1/1
