Adjusting Baler Rotation Speed Sensor (Baler with BaleTrak™ Monitor)

causym CAUTION: DO NOT TAKE CHANCES! Never use any type of tool or spanner on shaft while tractor engine is running. Shut off tractor engine, remove key and wait for moving parts to come to a standstill. Always remove tool from shaft as soon as you have finished using it.

Rotate baler by hand so that the gear (A) is in position shown. See "Rotating Baler by Hand" in "Operating the Baler - General Purposes" section.

Loosen lock nuts (B) and slide sensor (C) to obtain specified distance (D) between sensor (C) and gear (A).

Specification

Sensor to Gear -Distance 2 ± 0.5 mm (0.08 ± 0.02 in.)

Check that center line of sensor (C) is aligned with center line of gear (A).

Check sensor detection with monitor. See "Channel 017: Test of Baler Rotation Speed Sensor" in "BaleTrak Monitor Service" section.

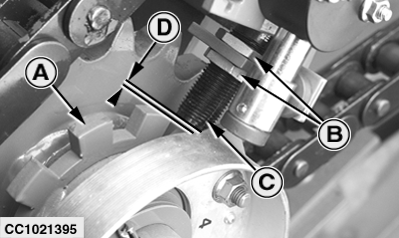

CC1021395

Adjusting Baler Rotation Speed Sensor (up to S.N. 49999)

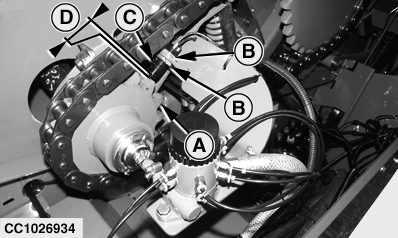

CC1026934

Adjusting Baler Rotation Speed Sensor (from S.N. 50000)


A-Gear
B-Lock nuts
C-Sensor
D-Distance

BaleTrak is a trademark of Deere & Company

OUCC006,00012FC -19-03OCT07-1/1
