Adjusting Oversize/Gate Switch and Full-Size Bale Switch (Baler up to S.N. 78999)

Adjusting oversize/gate switch:

1. Close the gate.

2. Loosen screw (A).

3. Adjust switch bracket (B) so that ramp (C) contacts switch roller (D) and specified distance (E) between bottom of switch and ramp (C) is within specification:

Specification

Switch to Ramp -Distance 7 ± 1 mm (0.27 ± 0.04 in.)

4. Retighten screw (A).


A-Cap screw
B-Switch bracket
C-Ramp
D-Switch roller
E-Distance

CC1030031

Baler With ELC Plus Monitor

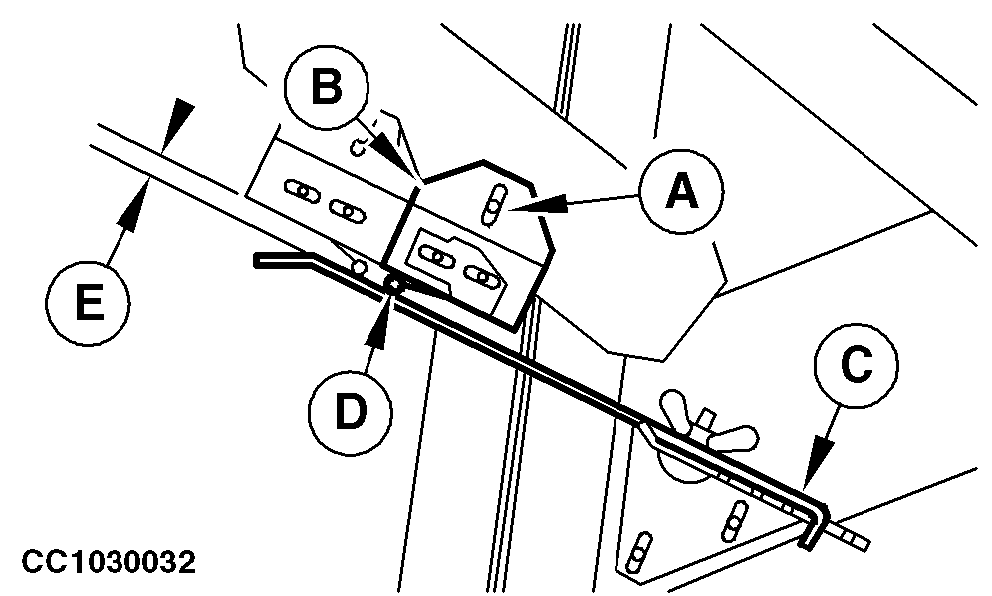

CC1030032

Baler With BaleTrak Monitor

OUCC006,0001304 -19-05SEP07-1/2

Adjusting full-size bale switch:

1. Close the gate.

2. Loosen screw (A).

3. Adjust switch bracket (B) so that ramp (C) contacts switch roller (D) and specified distance (E) between bottom of switch and ramp (C) is within specification:

Specification

Switch to Ramp -Distance 7 ± 1 mm (0.27 ± 0.04 in.)

4. Retighten screw (A).

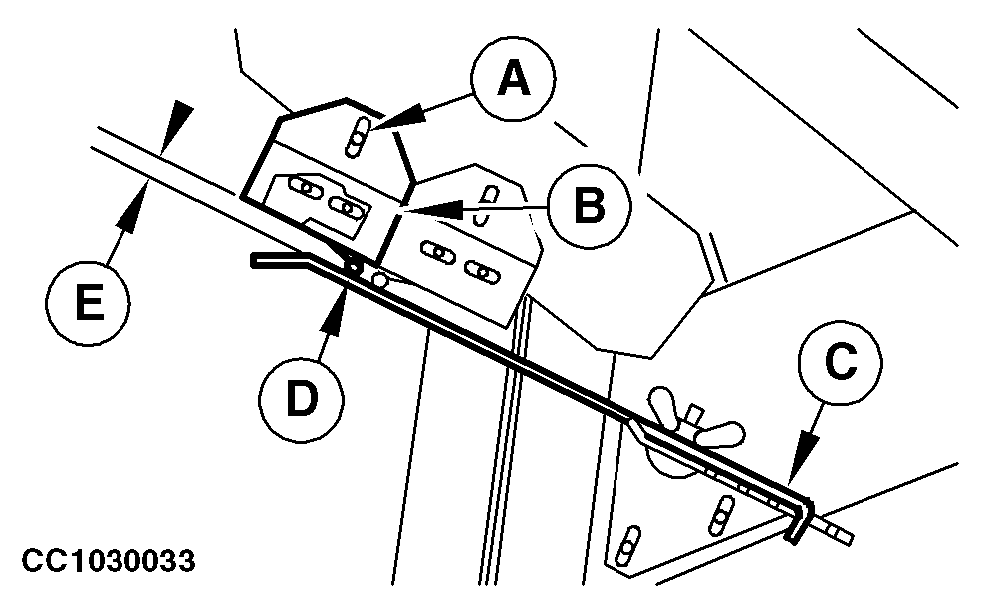

CC1030033


A-Cap screw
B-Switch bracket
C-Ramp
D-Switch roller
E-Distance

OUCC006,0001304 -19-05SEP07-2/2
