Adjusting Oversize/Gate Switch and Full-Size Bale Switch (Baler from S.N. 80000)

Adjusting switch bracket and full-size bale switch:

1. Close the gate.

2. Loosen screws (A).

3. Position and maintain bracket (B) parallel to the ramp (C) as shown.

4. Retighten screws (A).

5. Loosen screws (D).

6. Adjust switch so that ramp (C) contacts switch roller (E) and specified distance (F) between bottom of switch and ramp (C) is within specification:

Specification

Switch to Ramp -Distance 7 ± 1 mm (0.27 ± 0.04 in.)

7. Retighten screws (D).

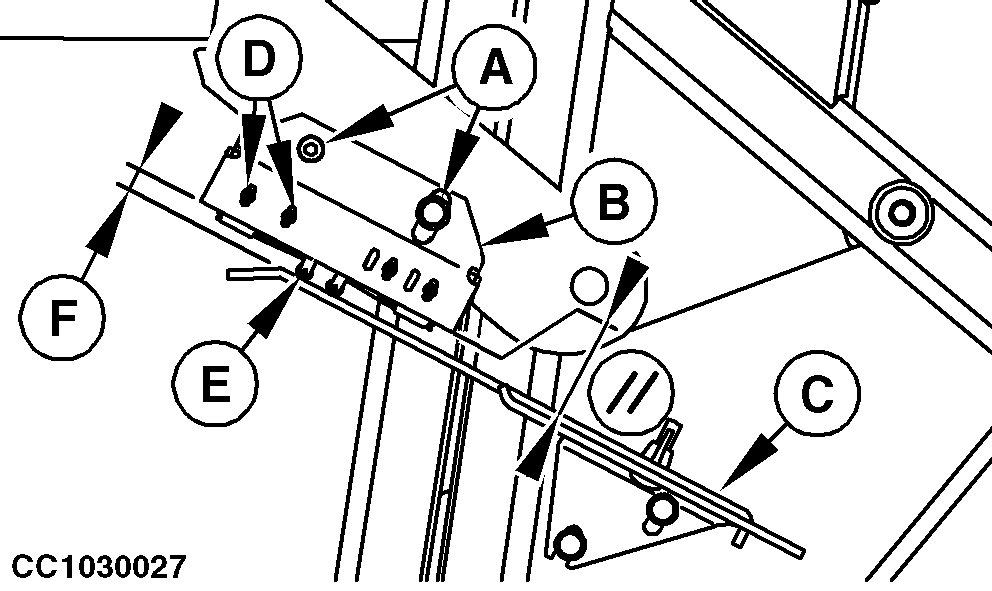

CC1030027


A-Cap screws
B-Switch bracket
C-Ramp
D-Cap screws
E-Switch roller
F-Distance

OUCC006,0001305 -19-05SEP07-1/2

Adjusting oversize/gate switch:

1. Close the gate.

2. Loosen screws (A).

3. Adjust switch so that ramp (B) contacts switch roller (C) and specified distance (D) between bottom of switch and ramp (B) is within specification:

Specification

Switch to Ramp -Distance 7 ± 1 mm (0.27 ± 0.04 in.)

4. Retighten screws (A).


A-Cap screws
B-Ramp
C-Switch roller
D-Distance

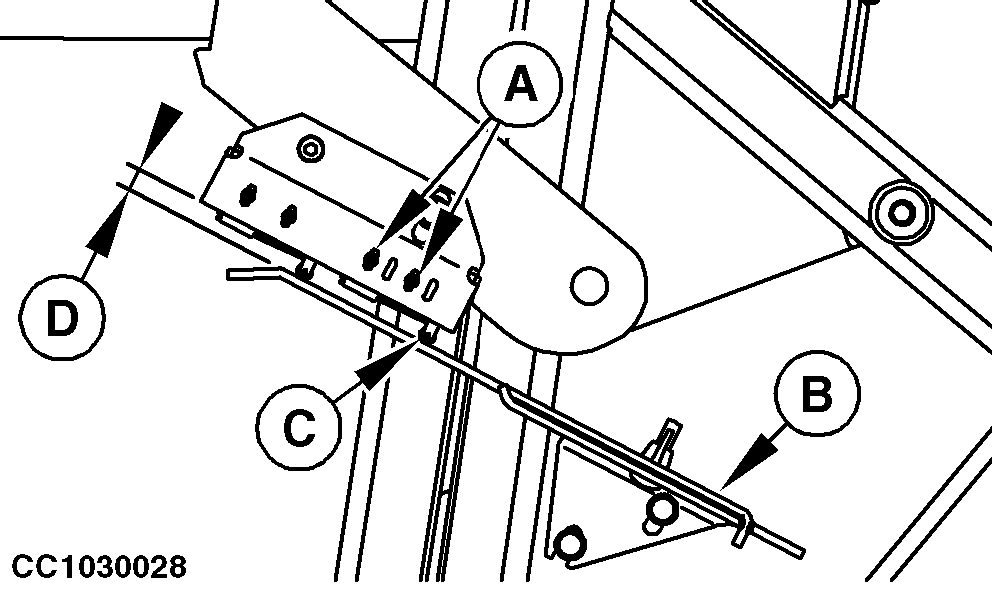

CC1030028

Baler With ELC Plus Monitor

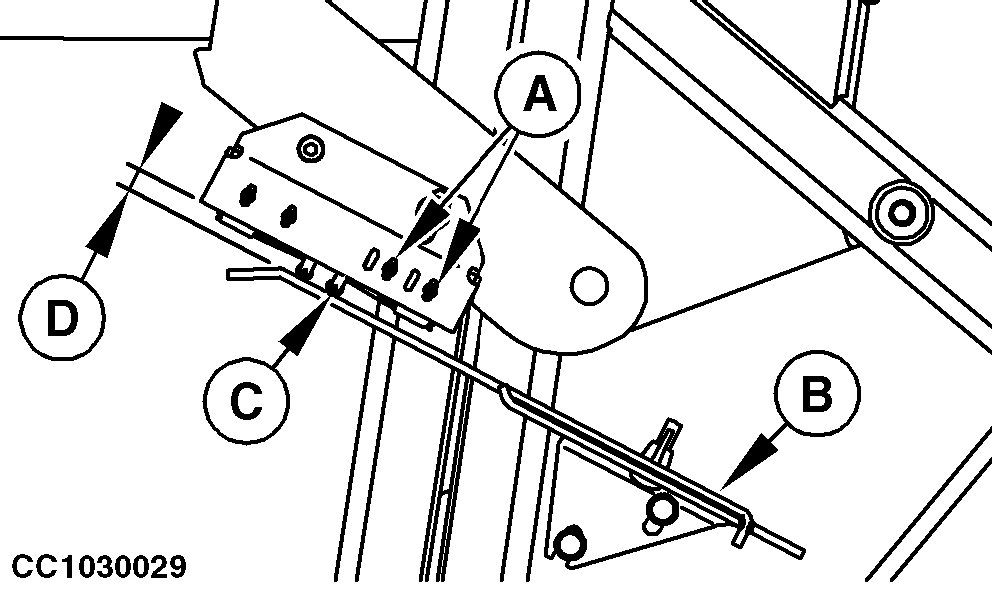

CC1030029

Baler With BaleTrak Monitor

OUCC006,0001305 -19-05SEP07-2/2
