Channel 013: Test of Full-Size Bale Switch

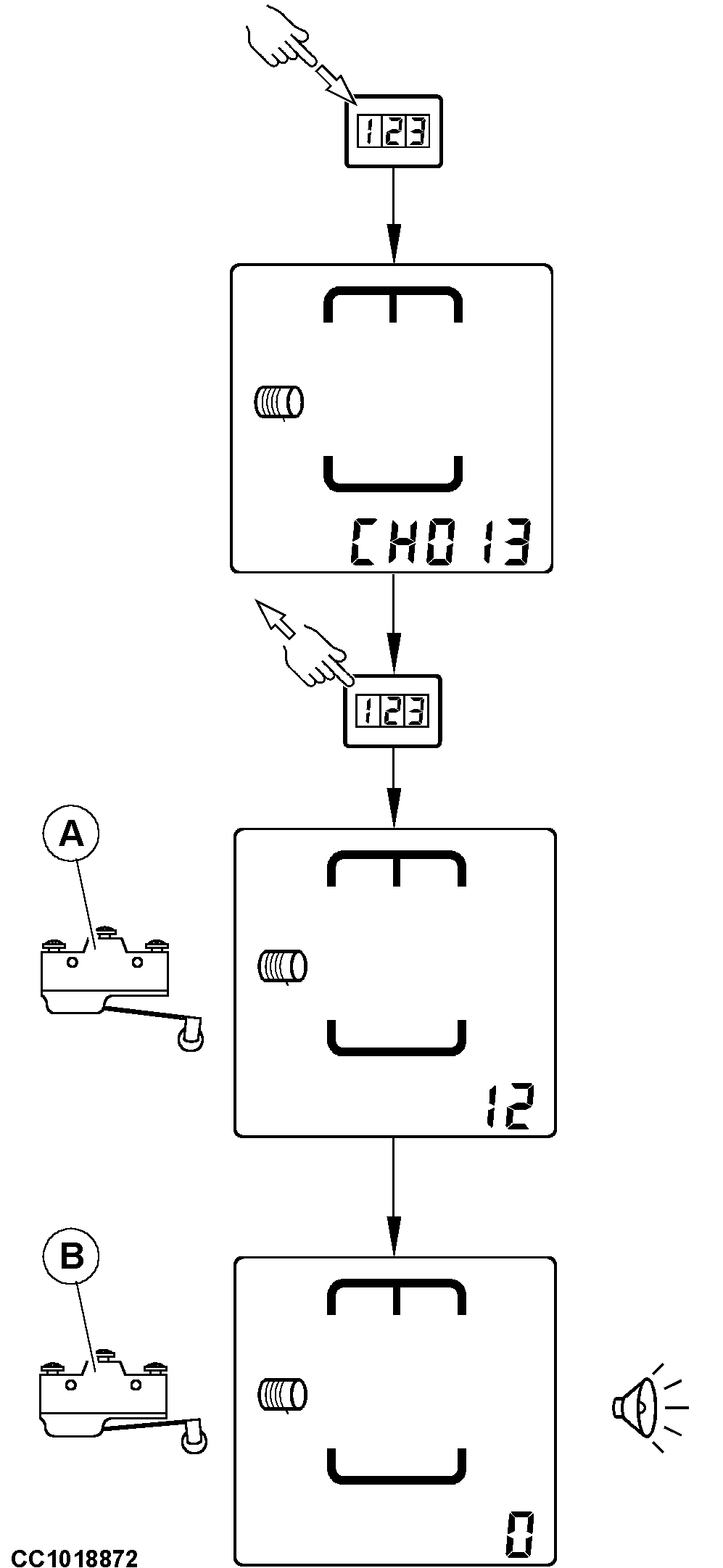

"CH013" allows to test the full-size bale switch.

The monitor displays "12" when the switch is open (A) and "0" with a continuous beep when the switch is closed (B).

If this test is NOT OK, see your John Deere dealer.

NOTE: See "Adjusting Oversize/Gate Switch and Full-Size Bale Switch" in "Service" section to check the switch adjustment.

A-Full-size bale switch opened
B-Full-size bale switch closed

OUCC006,0001306 -19-04OCT07-1/1
