Channel 014: Test of Oversize/Gate Switch

"CH014" allows to test the oversize/gate switch.

Slightly open the gate of the baler then manually activate the switch.

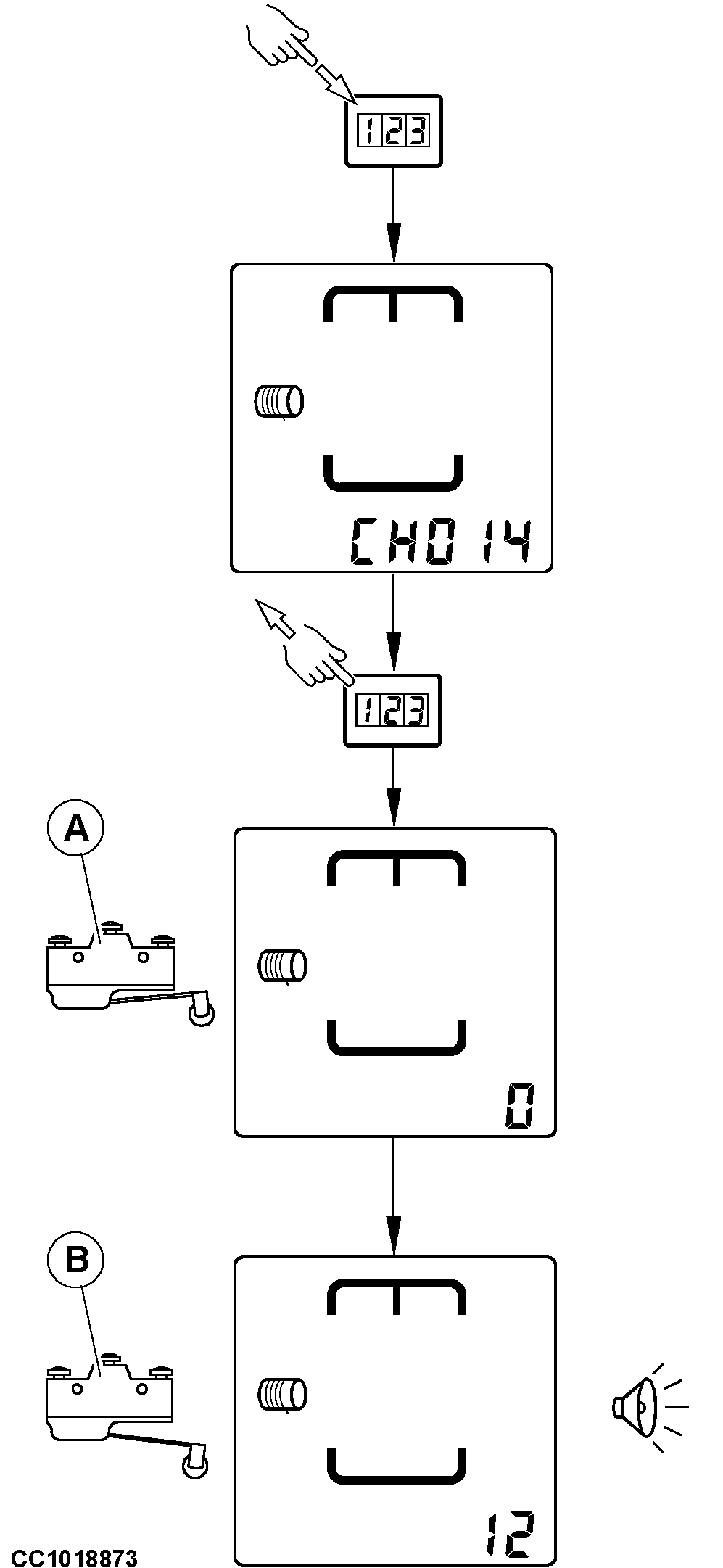

The monitor displays "0" when the switch is closed (A) and "12" with a continuous beep when the switch is opened (B).

If this test is NOT OK, see your John Deere dealer.

NOTE: See "Adjusting Oversize/Gate Switch and Full-Size Bale Switch" in "Service" section to check the switch adjustment.

A-Oversize/gate switch closed
B-Oversize/gate switch opened

OUCC006,0001307 -19-04OCT07-1/1
