Manual Start of Tying Cycle (Mechanical Bale Shape Indicators)

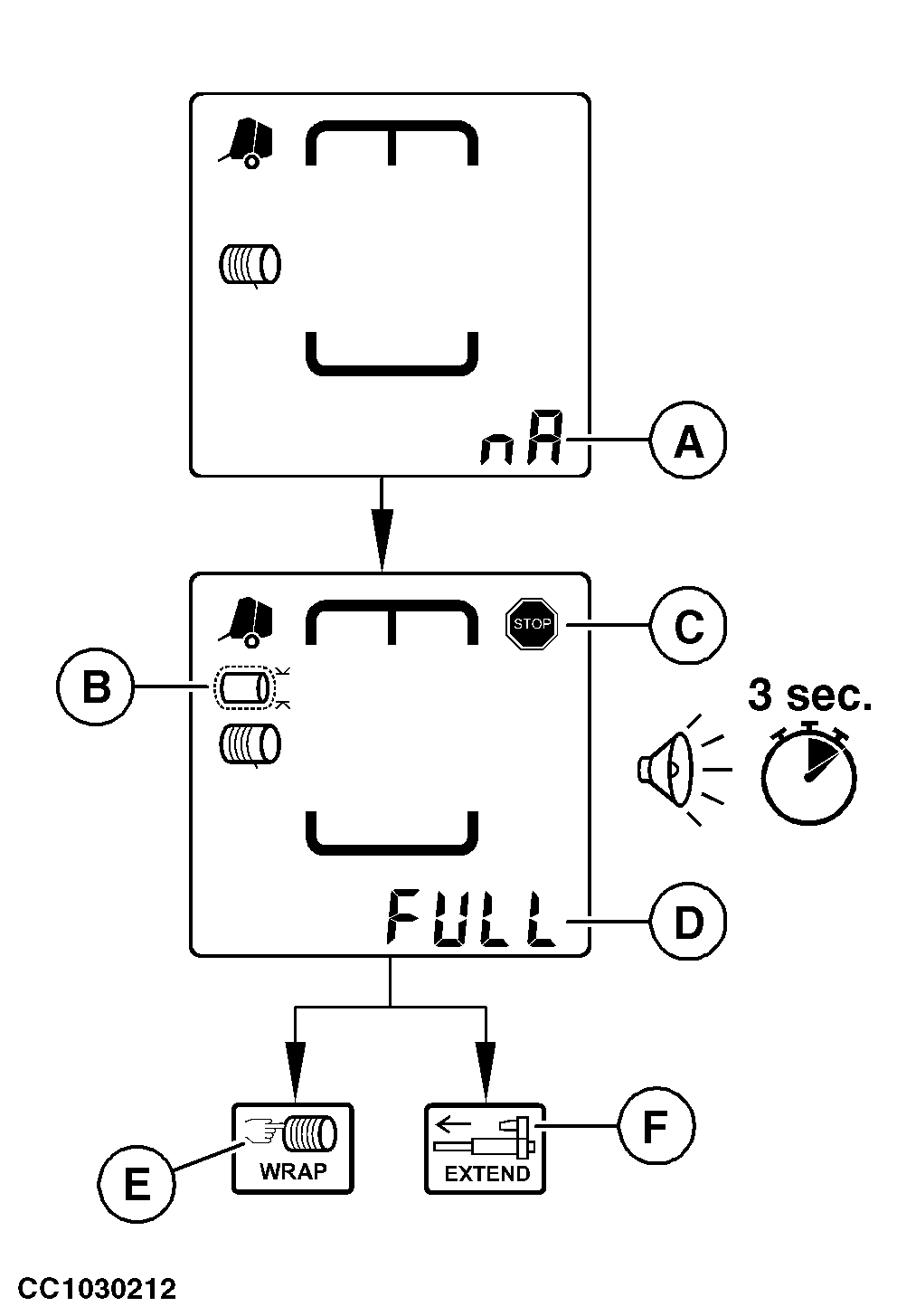

IMPORTANT: Channel 032 must be "OFF" to start a tying cycle manually, "nA" (A) flashes while this mode is selected. See "Channel 032: Automatic Start of Tying Cycle" in "BaleTrak Monitor Service" section.

When the adjusted bale diameter is reached, the monitor beeps continuously for 3 seconds, near full (B), "FULL" (D) and stop indicator (C) are displayed. Immediately stop the tractor.

Manually start an automatic tying cycle (E) or tie bale manually (F). See "Manual Start of an Automatic Tying Cycle" and "Tying a Bale Manually" in this section.

A-No automatic start of tying
B-Near full pictogram
C-Stop indicator
D-Full-size bale
E-Manually start an automatic tying cycle key
F-Extend key
