Manual Start of Tying Cycle (Electronic Bale Shape Indicators)

IMPORTANT: Channel 032 must be deactivated to start a tying cycle manually, "nA" (A) flashes while this mode is selected. See "Channel 032: Automatic Start of Tying Cycle" in "BaleTrak Monitor Service" section.

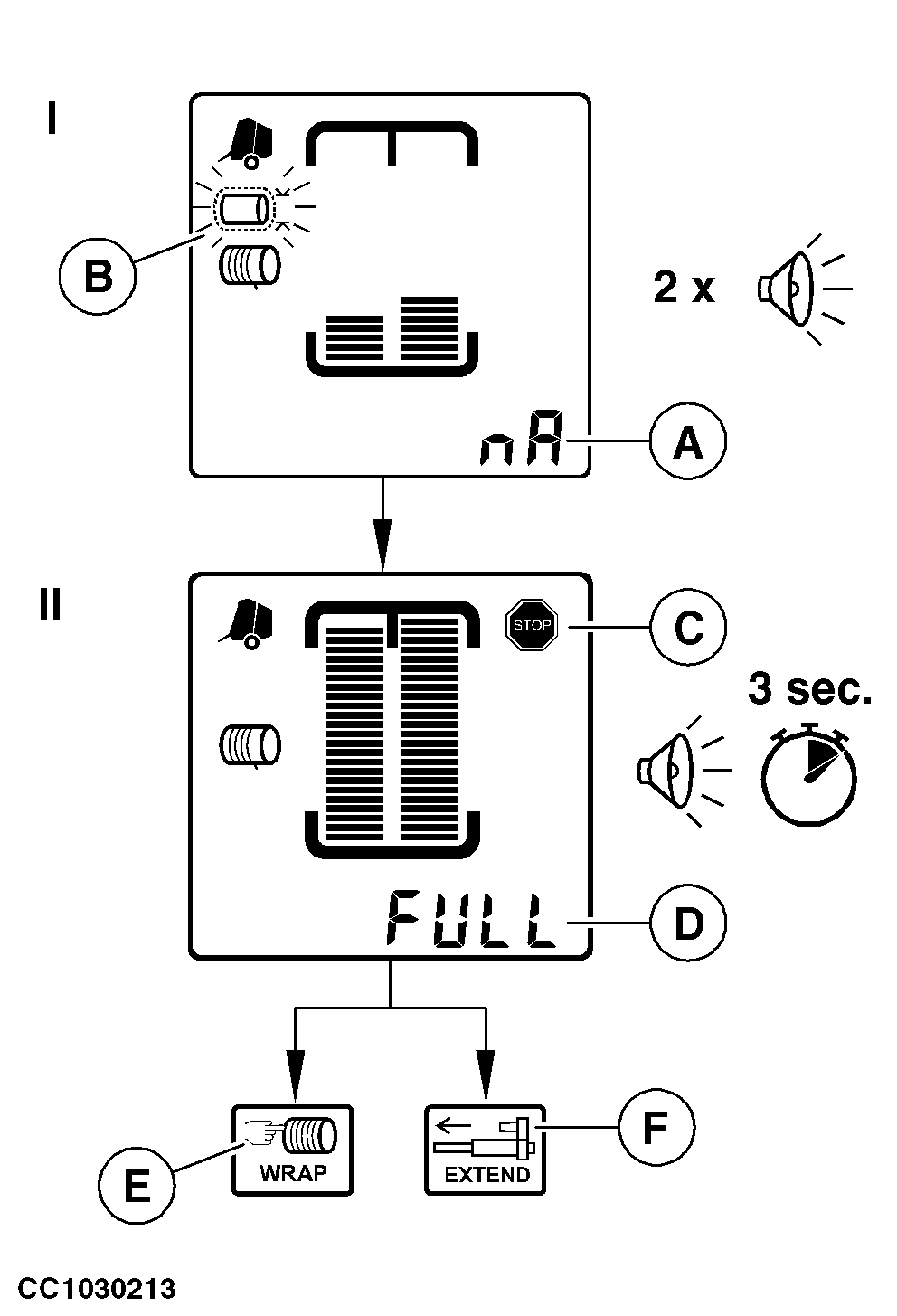

I - Just before the adjusted bale diameter is reached, near full pictogram (B) flashes and the monitor beeps twice.

II - When the adjusted bale diameter is reached, the monitor beeps continuously for 3 seconds, "FULL" (D) and stop indicator (C) are displayed. Immediately stop the tractor.

Manually start an automatic tying cycle (E) or tie bale manually (F). See "Manual Start of an Automatic Tying Cycle" and "Tying a Bale Manually" in this section.

A-No automatic start of tying
B-Near full pictogram
C-Stop indicator
D-Full-size bale
E-Manually start an automatic tying cycle key
F-Extend key

OUCC006,000130B -19-05SEP07-1/1
