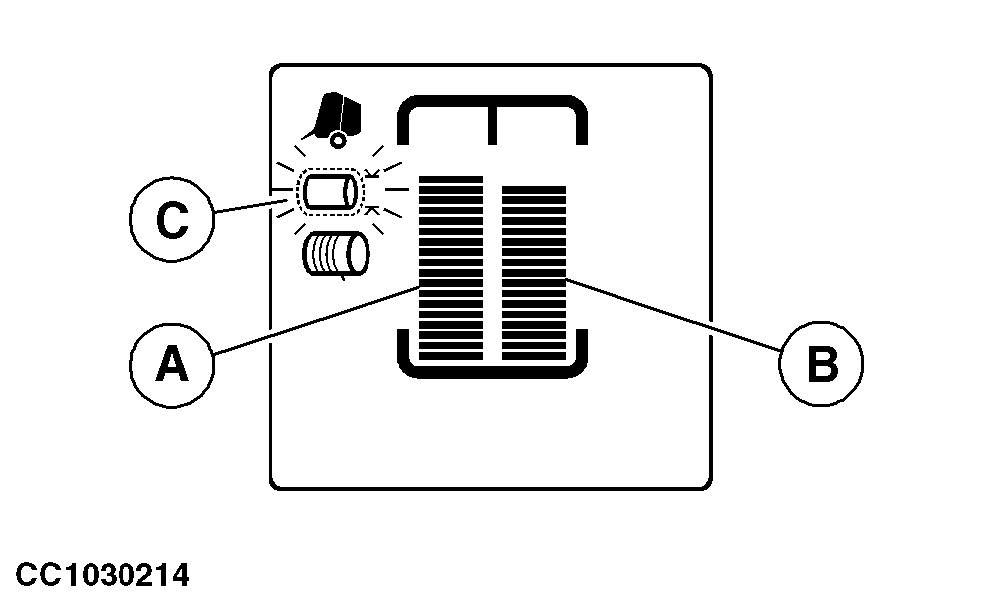

Guideline to Form a Good Bale (Electronic Bale Shape Indicators)1. Start feeding windrow in the center of baler.2. Weave quickly to one side of the windrow and feed the baler for several meters as close as possible to the sidesheet, without leaving hay in the field. NOTE: Weaving back and forth across the windrow should be done quickly in a crisp zigzag fashion to balance crop intake side-to-side. Weaving too often or too slowly puts too much crop in the center of the bale and should be avoided. 3. Weave quickly to the other side of the windrow and feed the baler for several meters as close as possible to the sidesheet, without leaving hay in the field. 4. Weave quickly back to the other side and feed the baler as close as possible to the sidesheet. Continue feeding this side until the bale shape indicator (A) or (B) corresponding to feeding side rises. 5. Then quickly drive to the other side and continue feeding this side until the bale shape indicator (A) or (B) corresponding to feeding side rises. 6. Continue to feed in this manner until near full pictogram (C) is flashing. Then finish up the bale by getting the bale shape indicators on both sides as high and as even as possible before reaching full size. IMPORTANT: At the end of bale formation, the bale shape indicators (A) and (B) will be at the top of bale shape windows. This corresponds to the maximum bale size possible with the baler. |
|
OUCC006,000130C -19-03OCT07-1/1 |
